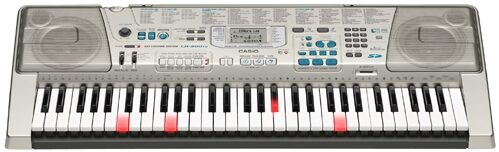

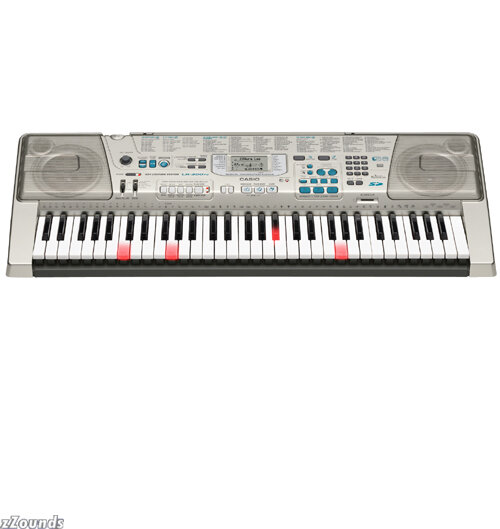

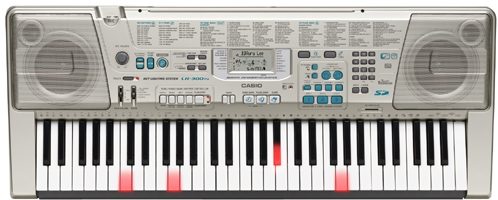

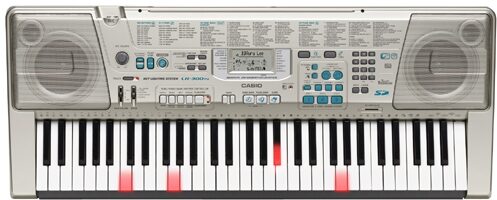

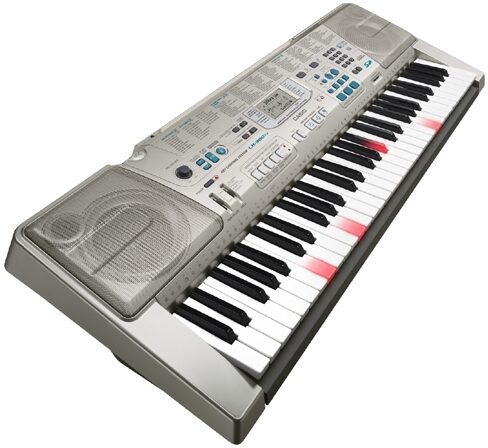

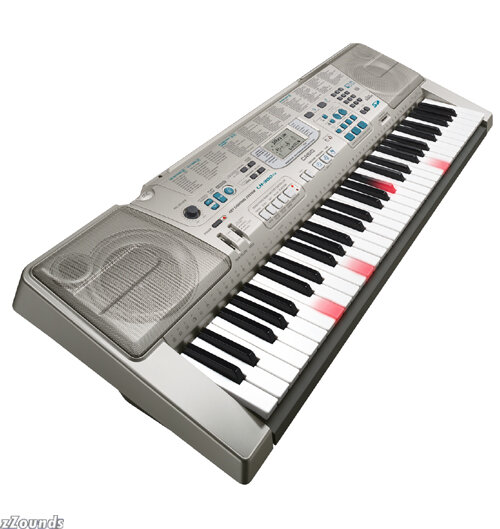

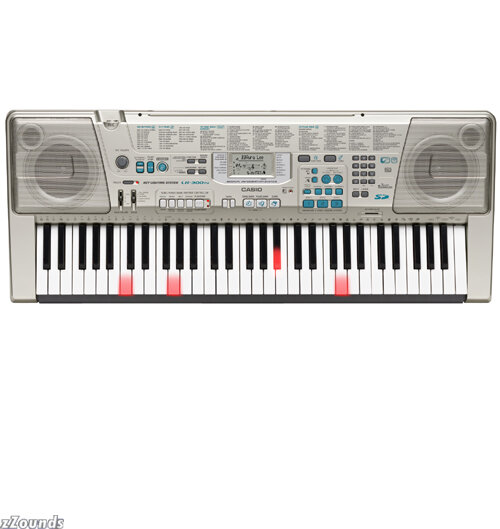

Casio LK300TV Lighted Keyboard with USB and TV Outs
No longer available at zZounds
zZounds Gear Experts Say...
The premium package includes a rugged keyboard stand, an AC adapter and Nady PH03 Headphones.
Overview
The LK-300TV gives a wide selection of tones with 514 stereo piano and synthesized sounds, drum sets and more. Learning to play is also made easier with the Advanced 3-Step Lesson System that lets you practice at your own pace while the keyboard grades your performances.
With the karaoke feature you can connect a microphone and sing along with the keyboard's built-in tunes. Other built-in tunes include 50 Song Bank tunes with Auto Accompaniment and 50 Piano Bank tunes, that you can enjoy listening to or play along with the keyboard.
With the karaoke feature you can connect a microphone and sing along with the keyboard's built-in tunes. Other built-in tunes include 50 Song Bank tunes with Auto Accompaniment and 50 Piano Bank tunes, that you can enjoy listening to or play along with the keyboard.
Specs
Keyboard: 61 Standard-size keys, 5 octaves (with touch response; 1, 2, off)
Key Light System: Can be turned on and off (up to 10 keys can be lit at the same time)
Tones: 514 (372 panel tones + 128 General MIDI tones + 14 drum sets); with layer and split
Digital Effects: Reverb (4 types), Chorus (4 types)
Polyphony: 32 notes maximum (16 for certain tones)
Auto Accompaniment
Rhythm Patterns: 120
Chords: 3 fingering methods (Casio Chord, Fingered, Full Range Chord)
Rhythm Controller: Start/Stop, Intro, Normal/Fill-In, Variation/Fill-In, Synchro/Ending
Accomp Volume: 0 to 127 (128 steps)
Advanced 3-step Lesson System: 3 lessons (Step 1, 2, 3)
Playback: Repeat play on a single tune
:Lesson Part: Left hand, right hand, both hands
Evaluation Mode: Scoring 1, Scoring 2, Scoring 3, Phrase Practice
Voice Fingering Guide: On/Off
Song Bank, Piano Bank
Number of Tunes: 100 (Song Bank/Karaoke 50, Piano Bank 35)
Controllers: Play/Stop, Pause, FF, Rew, Repeat
User Songs; Number of Songs: Up to 10 download songs
Capacity: Approximately 320 KB*
*Calculated based on 1 KB = 1024 bytes
Karaoke Mode
Number of Tunes: Song Bank/Karaoke: 50
Controllers: Play/Stop, Pause, FF, Rew, Repeat, Key Control (25 steps, - 12 semitones to + 12 semitones)
Metronome: On/Off
Beat Specifications: 0, 2 to 6
Song Memory
Number of Songs: 2 (1 Lesson Recording, 1 Performance Recording)
Recorded Data: Lesson Recording: Right-hand part, left-hand part, both-hand parts
Performance Recording: Track 1 (chord accompaniment), Track 2 (melody)
Recording Method: Real-time
Memory Capacity: Approximately 5,200 notes (2 songs)
Other Functions
Tempo: Variable (226 steps, notes = 30 to 255)
Transpose: 25 steps (-12 semitones to + 12 semitones)
Tuning: 101 steps (A4 = approximately 440Hz +/-50Cents)
Card
Supported Memory Cards: SD memory cards, optional Casio song data cards*
*May not be available in some geographic areas
Supported SD Cards: 1 GB or less (Cards with capacity greater than 1 GB are not supported)
Maximum Number of Importable Songs: Up to 1,000
Supported Data: SMF Format 0, CASIO Original Format CM2
Terminals
Sustain/Assignable Jack: Standard jack (sustain, sostenuto, soft, rhythm start/stop)
Phones/Output Jack: Stereo standard jack
Output Impedance: 100ohms
Output Voltage: 4.5V (RMS) max
Microphone In: Standard jack (with microphone volume knob)
Input impedance: 3K ohms
Input sensitivity: 10mV
USB port: Type B
Power Jack: 9V DC
Power Supply: 2-way
Batteries: 6 D-size batteries
Battery Life: Approximately 2.5 hours continuous operation on manganese batteries
AC Adaptor: AD-5
Auto Power Off: Turns power off approximately 6 minutes after last key operation. Enabled under battery power only, can be disabled manually.
Speaker Output: 2.5W + 2.5W
Power Consumption: 9V...7.7W
Dimensions: 96.0 x 37.5 x 14.6cm (37 13/16 x 14 3/4 x 5 3/4 in.)
Weight: Approximately 5.6kg (12.4 lbs) (without batteries)
Key Light System: Can be turned on and off (up to 10 keys can be lit at the same time)
Tones: 514 (372 panel tones + 128 General MIDI tones + 14 drum sets); with layer and split
Digital Effects: Reverb (4 types), Chorus (4 types)
Polyphony: 32 notes maximum (16 for certain tones)
Auto Accompaniment
Rhythm Patterns: 120
Chords: 3 fingering methods (Casio Chord, Fingered, Full Range Chord)
Rhythm Controller: Start/Stop, Intro, Normal/Fill-In, Variation/Fill-In, Synchro/Ending
Accomp Volume: 0 to 127 (128 steps)
Advanced 3-step Lesson System: 3 lessons (Step 1, 2, 3)
Playback: Repeat play on a single tune
:Lesson Part: Left hand, right hand, both hands
Evaluation Mode: Scoring 1, Scoring 2, Scoring 3, Phrase Practice
Voice Fingering Guide: On/Off
Song Bank, Piano Bank
Number of Tunes: 100 (Song Bank/Karaoke 50, Piano Bank 35)
Controllers: Play/Stop, Pause, FF, Rew, Repeat
User Songs; Number of Songs: Up to 10 download songs
Capacity: Approximately 320 KB*
*Calculated based on 1 KB = 1024 bytes
Karaoke Mode
Number of Tunes: Song Bank/Karaoke: 50
Controllers: Play/Stop, Pause, FF, Rew, Repeat, Key Control (25 steps, - 12 semitones to + 12 semitones)
Metronome: On/Off
Beat Specifications: 0, 2 to 6
Song Memory
Number of Songs: 2 (1 Lesson Recording, 1 Performance Recording)
Recorded Data: Lesson Recording: Right-hand part, left-hand part, both-hand parts
Performance Recording: Track 1 (chord accompaniment), Track 2 (melody)
Recording Method: Real-time
Memory Capacity: Approximately 5,200 notes (2 songs)
Other Functions
Tempo: Variable (226 steps, notes = 30 to 255)
Transpose: 25 steps (-12 semitones to + 12 semitones)
Tuning: 101 steps (A4 = approximately 440Hz +/-50Cents)
Card
Supported Memory Cards: SD memory cards, optional Casio song data cards*
*May not be available in some geographic areas
Supported SD Cards: 1 GB or less (Cards with capacity greater than 1 GB are not supported)
Maximum Number of Importable Songs: Up to 1,000
Supported Data: SMF Format 0, CASIO Original Format CM2
Terminals
Sustain/Assignable Jack: Standard jack (sustain, sostenuto, soft, rhythm start/stop)
Phones/Output Jack: Stereo standard jack
Output Impedance: 100ohms
Output Voltage: 4.5V (RMS) max
Microphone In: Standard jack (with microphone volume knob)
Input impedance: 3K ohms
Input sensitivity: 10mV
USB port: Type B
Power Jack: 9V DC
Power Supply: 2-way
Batteries: 6 D-size batteries
Battery Life: Approximately 2.5 hours continuous operation on manganese batteries
AC Adaptor: AD-5
Auto Power Off: Turns power off approximately 6 minutes after last key operation. Enabled under battery power only, can be disabled manually.
Speaker Output: 2.5W + 2.5W
Power Consumption: 9V...7.7W
Dimensions: 96.0 x 37.5 x 14.6cm (37 13/16 x 14 3/4 x 5 3/4 in.)
Weight: Approximately 5.6kg (12.4 lbs) (without batteries)
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 800-435-7732
Web: https://world.casio.com/support/
Phone: 800-435-7732
Web: https://world.casio.com/support/
Reviews
Reviewers gave this product an overall rating of 4 out of 5 stars.
(36 ratings)
Submitted October 30, 2008 by a customer from mac.com
"Great keyboard for beginners/students or even more advanced players."
Verified Customer
zZounds has verified that this reviewer made a purchase from us.
We won't be needing another general keyboard for a long time. Our next purchase will be an 88 key piano. We were very impressed with the sounds and features of this keyboard, and the price made it one of the few we considered.
Sound
Very good sounds. Smooth, authentic sounding pianos (better than you'd expect for a fairly low cost keyboard), usable organs, good percussion. The built-in lesson/TV feature turned out to be less useful than we anticipated, but over-all it's a sweet keyboard.
Features
The built-in songs and the TV/lesson feature are not very useful as instruction avenues. But it's well laid out in terms of controls, functions and sound organization & access.
Ease of Use
Intuitive interface, easy to get good sounds. Stereo piano used with the built in speakers is particularly impressive.
Quality
It's very well made for a budget keyboard. No problems out of the box, seems to be holding up well. Good quality built-in speakers. We'll be using it for gigs as well as home recording and keyboard lessons.
Value
Definitely worth the money.
Manufacturer Support
Haven't needed any contact w/Casio, so we don't have an opinion about their customer service. We did however need to get help from Zzounds (the first one was damaged in shipping) and we are EXTREMELY pleased with all of our dealings with Zzounds. Thanx again, guys!
The Wow Factor
It DOES look and sound good, but we got it more for its features than its 'wow' factor.
Musical Background:
Looooooong time pro musician, stage and studio ready.
Musical Style:
Rock n Roll, country, jazz, blues, bluegrass, folk
21 of 23 people (91%) people found this review helpful. Did you?
