CAD StagePass WX1210GTR VHF Wireless Bodypack Guitar System
No longer available at zZounds
Free your guitar from cables with the CAD StagePass WX1210GTR. This wireless bodypack system offers 10-hour battery life and true-diversity operation.
Overview
The CAD StagePass WX1210GTR VHF Wireless Guitar System features frequency agile diversity reception for outstanding connectivity, minimizing multipath interference. Sixteen Channel Agility for frequency plan flexibility and VHF Channelization provides increased operating range. Scan-Link technology provides instantaneous and automatic channel configuration.
The receiver conducts an environmental frequency evaluation then selects a channel. Second, the receiver links to the transmitter and sets the transmit frequency automatically. Two AA batteries supply more than 10 hours of battery life. Transmitters have soft touch On and Mute switches with multi-color LED indicators to monitor mute status and battery life. Metal Chassis provide a durable and formidable shielded enclosure. The WX1210 receiver offers 1/4-inch and XLR outputs for maximum flexibility.
- Diversity Operation to minimize multipath interference
- 16 Channel Agility for frequency plan flexibility
- Scan-Link technology for instantaneous and automatic channel configuration
- Double AA batteries with >10hrs of battery life
- Transmitters have soft touch On and Mute switches with multi-color LED indicators
- Metal Chassis for a durable and formidable shielded enclosure
- 1/4 inch and XLR outputs for maximum flexibility

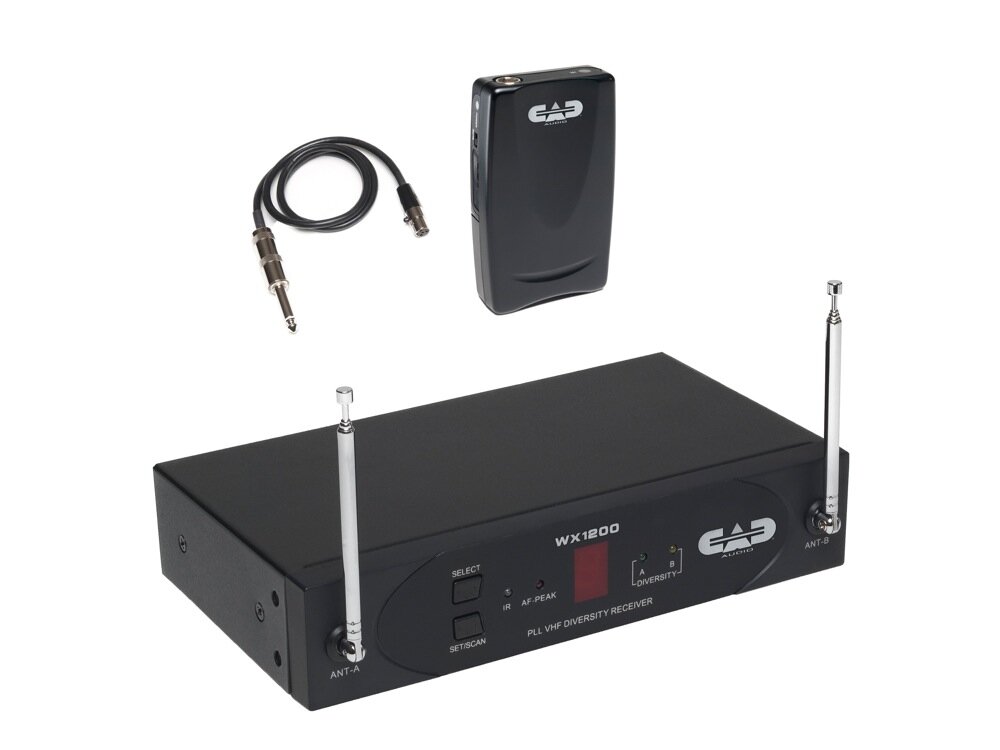

Includes:
- RX1200 Receiver
- TX1210 Bodypack Transmitter
- WXGTR Instrument Cable
The receiver conducts an environmental frequency evaluation then selects a channel. Second, the receiver links to the transmitter and sets the transmit frequency automatically. Two AA batteries supply more than 10 hours of battery life. Transmitters have soft touch On and Mute switches with multi-color LED indicators to monitor mute status and battery life. Metal Chassis provide a durable and formidable shielded enclosure. The WX1210 receiver offers 1/4-inch and XLR outputs for maximum flexibility.
Features:
- VHF Channelization for increased operating range- Diversity Operation to minimize multipath interference
- 16 Channel Agility for frequency plan flexibility
- Scan-Link technology for instantaneous and automatic channel configuration
- Double AA batteries with >10hrs of battery life
- Transmitters have soft touch On and Mute switches with multi-color LED indicators
- Metal Chassis for a durable and formidable shielded enclosure
- 1/4 inch and XLR outputs for maximum flexibility
Includes:
- RX1200 Receiver
- TX1210 Bodypack Transmitter
- WXGTR Instrument Cable
Specs
RX1200 Wireless Receiver:
- Maximum Receiver Output Level:
- Balanced Output: -16dBV
- Unbalanced Output: -13dBV
- Output Impedance:
- Balanced Output: 350ohms
- Unbalanced Output: 250ohms

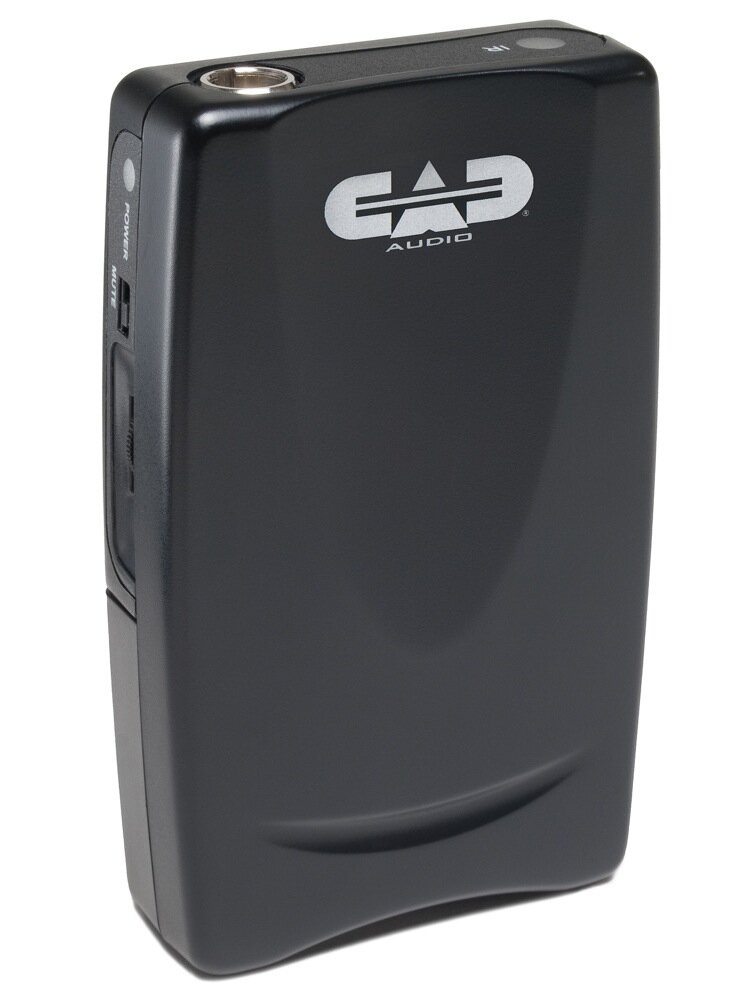

TX1210 Body Pack Transmitter:
- Frequency Response: 40Hz - 15KHz
- Maximum Input Level: Microphone Input: -18dBV
- Instrument Input: -6dB
- RF Output: < 50mW
- Dimensions: 2 9/16 x 4 1/4 x 15/16 inches
- Net Weight: 2.8 ounces
- Power Requirements: 2x AA batteries
- Battery Life: 10 hours, when using high-quality alkaline batteries
- Maximum Receiver Output Level:
- Balanced Output: -16dBV
- Unbalanced Output: -13dBV
- Output Impedance:
- Balanced Output: 350ohms
- Unbalanced Output: 250ohms
TX1210 Body Pack Transmitter:
- Frequency Response: 40Hz - 15KHz
- Maximum Input Level: Microphone Input: -18dBV
- Instrument Input: -6dB
- RF Output: < 50mW
- Dimensions: 2 9/16 x 4 1/4 x 15/16 inches
- Net Weight: 2.8 ounces
- Power Requirements: 2x AA batteries
- Battery Life: 10 hours, when using high-quality alkaline batteries
