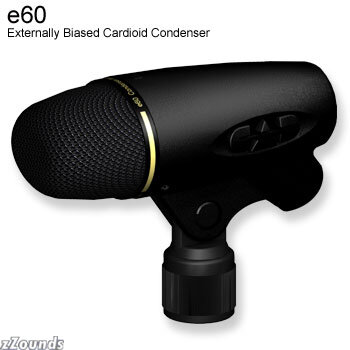

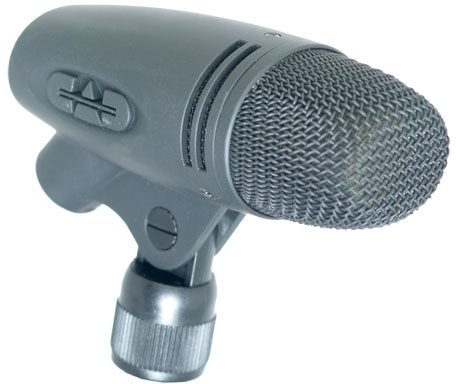

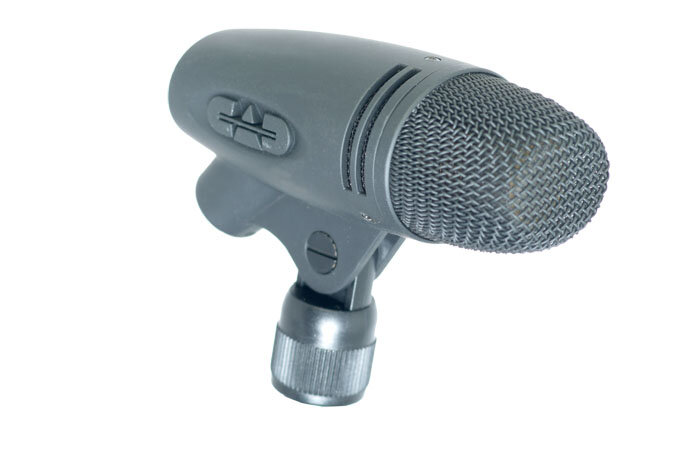

CAD Audio E60 Equitek Cardioid Condenser Microphone
No longer available at zZounds
![CAD Audio E60 Equitek Cardioid Condenser Microphone, Main](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/e60_big-e55895461e41cbb5391fcef65d24871c.jpg)
Capture the subtlest whispers of sound in stunning clarity with this CAD microphone's sophisticated electronics and 24k gold sputtered condenser capsule.
Overview
From the subtlest notes to a blast of brass, the CAD E60 Equitek cardioid condenser microphone will capture the sound with unprecedented detail. Sophisticated electronics and a precise gold sputtered capsule provide clarity, and incredible versatility.
- 10dB non-capacitive pad
- 4 position hi-pass filter - flat, 40Hz, 80Hz, and 120Hz
- CAD's proprietary discrete linear power supply for efficient low noise and linear power regulation, allows greater dynamic range and lower equivalent self
Features:
- 16mm, 24k Gold sputtered externally biased condenser capsule.- 10dB non-capacitive pad
- 4 position hi-pass filter - flat, 40Hz, 80Hz, and 120Hz
- CAD's proprietary discrete linear power supply for efficient low noise and linear power regulation, allows greater dynamic range and lower equivalent self
Specs
Type: Front address, externally biased condenser
Frequency response: 30Hz - 20kHz (with low end boost)
Polar Pattern: Cardioid
Impedence: Low (300 ohms nominal)
Open Circuit Voltage: -54dB (0dB = 1 volt per microbar)
Dynamic Range: 125dB
Equivalent Noise Level: 13dB Equivalent SPL, A weighted
Maximum SPL: 138dB SPL (with pad on)
Total Harmonic Distortion: Less than 0.15%
Powering: 24 - 52 Volts Phantom Power
Connector: Gold plated 3-pin XLR type
Finish: Durable Black 'leather feal' uerethane housing with black grille screen
Net Weight: 9.5oz. (270 grams)
Frequency response: 30Hz - 20kHz (with low end boost)
Polar Pattern: Cardioid
Impedence: Low (300 ohms nominal)
Open Circuit Voltage: -54dB (0dB = 1 volt per microbar)
Dynamic Range: 125dB
Equivalent Noise Level: 13dB Equivalent SPL, A weighted
Maximum SPL: 138dB SPL (with pad on)
Total Harmonic Distortion: Less than 0.15%
Powering: 24 - 52 Volts Phantom Power
Connector: Gold plated 3-pin XLR type
Finish: Durable Black 'leather feal' uerethane housing with black grille screen
Net Weight: 9.5oz. (270 grams)
