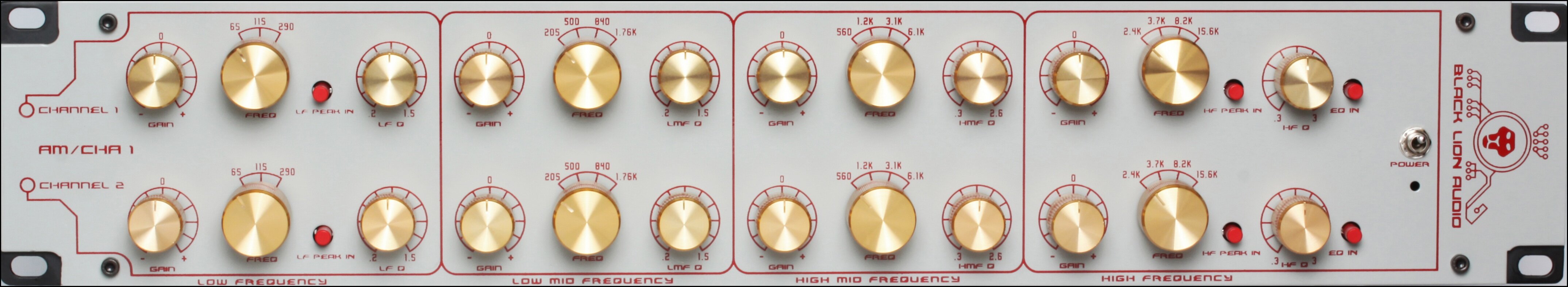

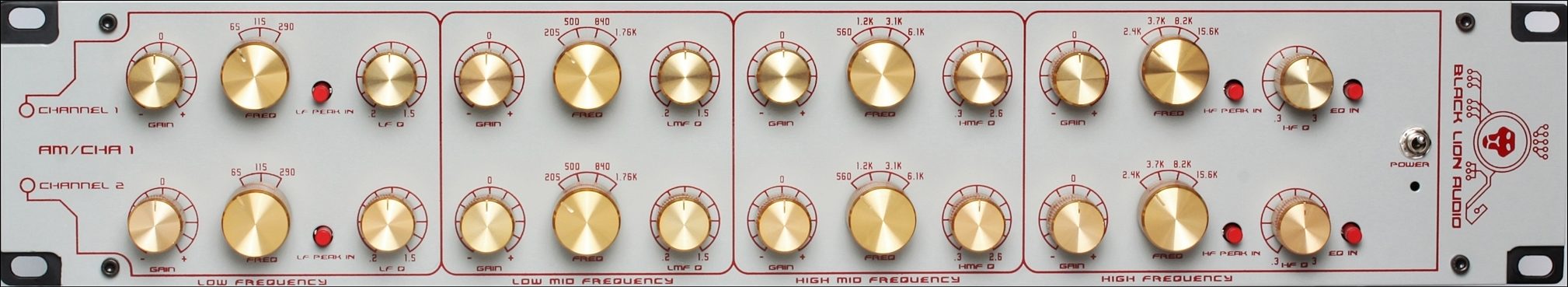

Black Lion Audio AM/CHA1 EQ Equalizer
No longer available at zZounds
![Black Lion Audio AM/CHA1 EQ Equalizer, Main](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/dagd-3e2d761085eed6fc00335ae6b4294f14.jpg)
Infuse two channels with rich warmth or airy brightness with Black Lion's highly musical inductor equalizer. Tweak up to four of 15 bands with the AM/CHA1.
Overview
Many people are a fan of inductor-based EQ. While it doesn't offer the surgical precision of its solid-state based gyrator circuit cousin, it has a wonderful musical quality that's very natural sounding. Typically a good inductor EQ has, in the past, been rather expensive to purchase. A classic API or Pultec-based EQ will set you back a few thousand dollars for a stereo pair.
Since Black Lion Audio enjoys a good challenge, their goal was to develop a transformer coupled two channel inductor based EQ that could perform every bit as well as a high priced mastering-grade setup, but do it at a lower price. Since there are lots of Pultec clones out there, the wanted do develop something that was unique. BLA based it on what's known as a state-variable filter, and built it around custom wound Cinemag inductors. They gave it overlapping frequencies within each set of frequency bands to enable flexibility and frequency correction when needed. BLA use grain oriented silicon steel transformers for the input and output stages to give the audio a nice vintage character, although amorphous core Lundahl transformers are available as an option for an additional charge.
And since BLA have access to a few mastering-grade inductor EQ's, they tweaked and refined the circuit until they were satisfied that it was every bit as good as the expensive brands. The smooth highs, natural mids, and thick, powerful bass that only a good inductor EQ can deliver. Go ahead; shoot it out against your Neve,… read more Massenburg, API, or Tube Tech. BLA thinks you'll be very impressed.
- 15 band, fully adjustable boost/cut with variable Q
- Low boost/cut: 65Hz, 115Hz, 290Hz, Q variable from 0.2 to 1.5
- Low mid boost/cut: 205Hz, 500Hz, 840Hz, 1.76kHz, Q variable from 0.2 to 1.5
- Mid boost/cut: 560Hz, 1.2kHz, 3.1kHz, 6.1kHz, Q variable from 0.3 to 2.6
- High boost/cut: 2.4kHz, 3.7kHz, 8.2kHz, 15.6kHz, Q variable from 0.3 to 3
- Selectable peak or shelf for low and high frequencies
- Fully transformer coupled input and output
- 1/4-inch TRS connectors
- 110/220vac power read less
Since Black Lion Audio enjoys a good challenge, their goal was to develop a transformer coupled two channel inductor based EQ that could perform every bit as well as a high priced mastering-grade setup, but do it at a lower price. Since there are lots of Pultec clones out there, the wanted do develop something that was unique. BLA based it on what's known as a state-variable filter, and built it around custom wound Cinemag inductors. They gave it overlapping frequencies within each set of frequency bands to enable flexibility and frequency correction when needed. BLA use grain oriented silicon steel transformers for the input and output stages to give the audio a nice vintage character, although amorphous core Lundahl transformers are available as an option for an additional charge.
And since BLA have access to a few mastering-grade inductor EQ's, they tweaked and refined the circuit until they were satisfied that it was every bit as good as the expensive brands. The smooth highs, natural mids, and thick, powerful bass that only a good inductor EQ can deliver. Go ahead; shoot it out against your Neve,… read more Massenburg, API, or Tube Tech. BLA thinks you'll be very impressed.
Features
- 2U high rack mount chassis- 15 band, fully adjustable boost/cut with variable Q
- Low boost/cut: 65Hz, 115Hz, 290Hz, Q variable from 0.2 to 1.5
- Low mid boost/cut: 205Hz, 500Hz, 840Hz, 1.76kHz, Q variable from 0.2 to 1.5
- Mid boost/cut: 560Hz, 1.2kHz, 3.1kHz, 6.1kHz, Q variable from 0.3 to 2.6
- High boost/cut: 2.4kHz, 3.7kHz, 8.2kHz, 15.6kHz, Q variable from 0.3 to 3
- Selectable peak or shelf for low and high frequencies
- Fully transformer coupled input and output
- 1/4-inch TRS connectors
- 110/220vac power read less
