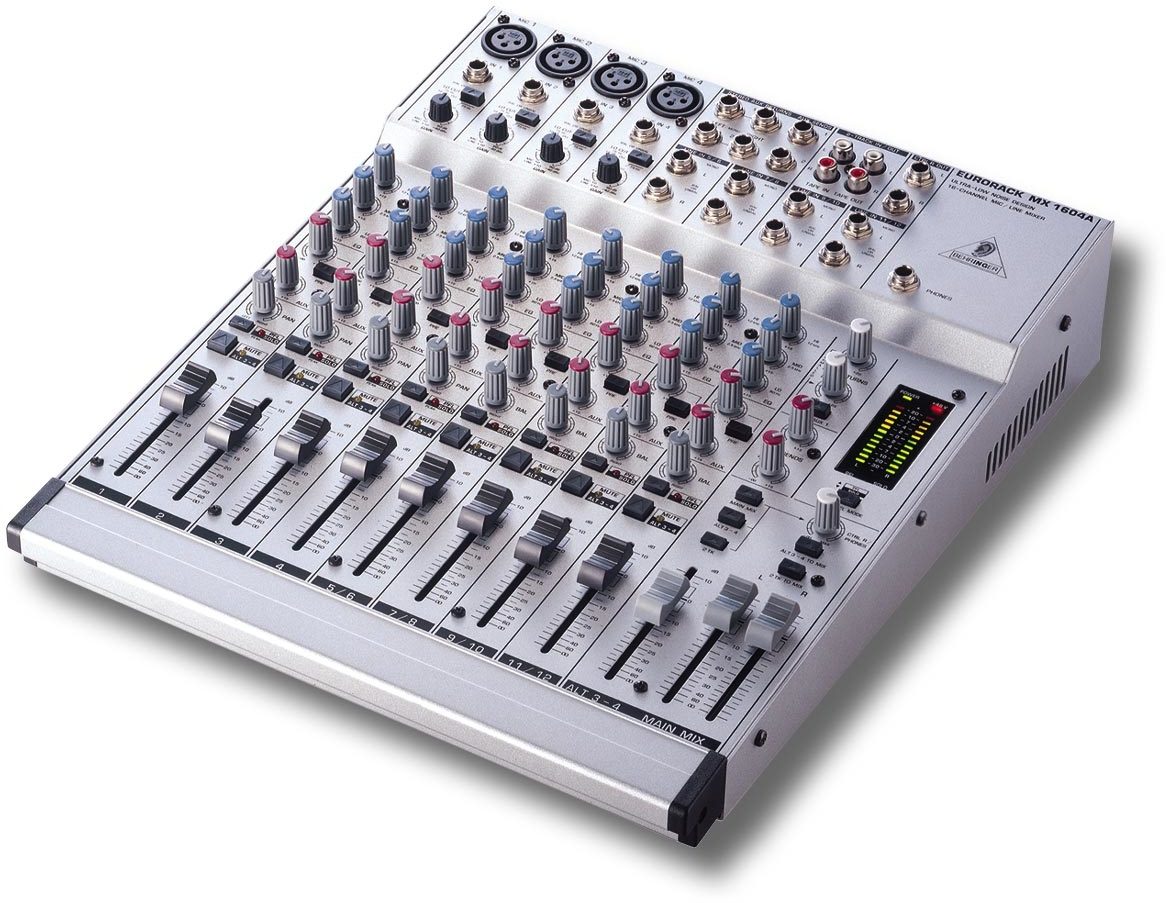

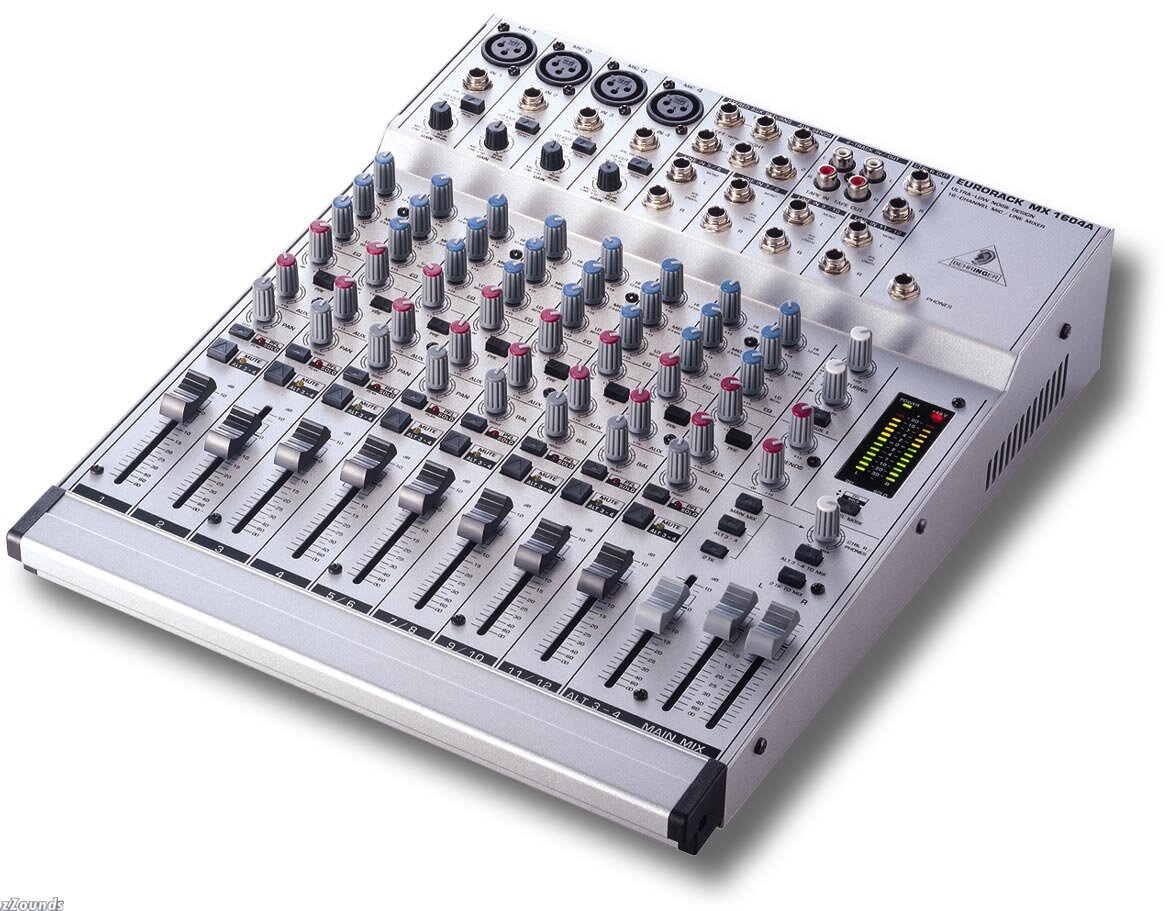

Behringer MX1604A 12-Channel Mixing Console
No longer available at zZounds
zZounds Gear Experts Say...
ALT 3-4 bus. ULN (Ultra-Low Noise) circuitry. Discrete microphone preamplifiers.
Overview
A Goliath-Full of Features in a David-Sized Space
With the MX1604A, Uli Behringer has transported mixing to a new level. To do this, he integrated an unbelievable number of features in this super-compact format, for example the additional ALT 3-4 bus - not at all common in this class. ULN (Ultra-Low Noise) circuitry, state-of-the-art 4580 operational amplifiers, and discrete microphone preamplifiers ensure extremely transparent, noise-free sound. All naturally encased in a rugged steel chassis and constructed of selected high-quality components.
Professional Faders Make Mixing a Pleasure
Should you do without professional feel and exceptional power, just because you're using a compact console? The answer is, quite simply, no. That's why Behringer used super-precise 60-mm Alps/Panasonic faders in every channel and in the main mix. Individual pre/post switching per channel gives you the flexibility you seek.
Peak LEDs in the Microphone Channels
Picture this: you're doing a live mix and one of the microphone channels starts clipping. The integrated channel peak LED shows you immediately which input level you need to reduce.
Solo-in-Place or PFL: It's Your Choice
You can only do your job half way if you've only got pre-fader monitoring. That's why Behringer has given you the choice: the solo-in-place mode monitors the signal as it appears in the mix, whereas PFL (Pre-Fader Listening) monitors the signal at nominal level independently of the fader position. The solo LEDs keep you… read more informed as to which channel you're monitoring.
Pre-Fader Switch for All Channels
A further important detail that is often forgotten is the possibility to switch aux send 1 to pre-fader. This allows you to access the signal before the fader, i.e. for a monitor mix. Miss this elsewhere?
Ultra-Musical 3-Band EQ
It's the heart of the desk. With it, you can bring out the nuances of a vocal or make an instrument stand out in the mix. The impressive, newly developed EQ section with its enormous bandwidth allows smooth frequency shaping for warm lows and crisp, clear highs. To help you get the best out of each signal and sound-design to your heart's delight, the MX1604A's EQ section features 3 ultra-musical filters: 80 Hz, 2.5 kHz, and 12 kHz.
Balanced Inputs: Signal Purity at its Best
Thanks to the MX1604A's professional balanced inputs, noise and hum are remnants of the past. In addition, it hass sports balanced XLR outputs for professional audio/video applications or permanent installations.
ALT 3-4: The Direct Road to Even More Possibilities
Like with full-sized studio consoles, all signals can be routed to the main mix or to the ALT 3-4 bus. This enables you to easily feed a multi-track recorder or create a separate mix, which can be assigned to the main mix.
The MX1604A: Believe Your Ears
When you hear the musical, transparent sound of this desk, keeping the super-compact dimensions in mind, one thing becomes very clear: there's a real big console hidden inside this tiny thing. Add the incredible functionality and model ergonomics, and the picture becomes even clearer.
Eurorack MX1604A: It's Bound to be Your Next Console! read less
With the MX1604A, Uli Behringer has transported mixing to a new level. To do this, he integrated an unbelievable number of features in this super-compact format, for example the additional ALT 3-4 bus - not at all common in this class. ULN (Ultra-Low Noise) circuitry, state-of-the-art 4580 operational amplifiers, and discrete microphone preamplifiers ensure extremely transparent, noise-free sound. All naturally encased in a rugged steel chassis and constructed of selected high-quality components.
Professional Faders Make Mixing a Pleasure
Should you do without professional feel and exceptional power, just because you're using a compact console? The answer is, quite simply, no. That's why Behringer used super-precise 60-mm Alps/Panasonic faders in every channel and in the main mix. Individual pre/post switching per channel gives you the flexibility you seek.
Peak LEDs in the Microphone Channels
Picture this: you're doing a live mix and one of the microphone channels starts clipping. The integrated channel peak LED shows you immediately which input level you need to reduce.
Solo-in-Place or PFL: It's Your Choice
You can only do your job half way if you've only got pre-fader monitoring. That's why Behringer has given you the choice: the solo-in-place mode monitors the signal as it appears in the mix, whereas PFL (Pre-Fader Listening) monitors the signal at nominal level independently of the fader position. The solo LEDs keep you… read more informed as to which channel you're monitoring.
Pre-Fader Switch for All Channels
A further important detail that is often forgotten is the possibility to switch aux send 1 to pre-fader. This allows you to access the signal before the fader, i.e. for a monitor mix. Miss this elsewhere?
Ultra-Musical 3-Band EQ
It's the heart of the desk. With it, you can bring out the nuances of a vocal or make an instrument stand out in the mix. The impressive, newly developed EQ section with its enormous bandwidth allows smooth frequency shaping for warm lows and crisp, clear highs. To help you get the best out of each signal and sound-design to your heart's delight, the MX1604A's EQ section features 3 ultra-musical filters: 80 Hz, 2.5 kHz, and 12 kHz.
Balanced Inputs: Signal Purity at its Best
Thanks to the MX1604A's professional balanced inputs, noise and hum are remnants of the past. In addition, it hass sports balanced XLR outputs for professional audio/video applications or permanent installations.
ALT 3-4: The Direct Road to Even More Possibilities
Like with full-sized studio consoles, all signals can be routed to the main mix or to the ALT 3-4 bus. This enables you to easily feed a multi-track recorder or create a separate mix, which can be assigned to the main mix.
The MX1604A: Believe Your Ears
When you hear the musical, transparent sound of this desk, keeping the super-compact dimensions in mind, one thing becomes very clear: there's a real big console hidden inside this tiny thing. Add the incredible functionality and model ergonomics, and the picture becomes even clearer.
Eurorack MX1604A: It's Bound to be Your Next Console! read less
Specs
Input Channels
Mic input: electronically balanced, discrete input configuration
Mic E.I.N.: (22 Hz - 22 kHz) -129.5 dBu, 150 Ohm source
-117.3 dBqp, 150 Ohm source
-132.0 dBu, input shorted
-122.0 dBqp, input shorted
Distortion: (THD&N) 0.007% at +4 dBu, 1 kHz, Bandwidth 80 kHz
Gain: range +10 dB to +60 dB
Max input: (Mic) +12 dBu
Line input: electronically balanced
Sensitivity range: +10 dBu to -40 dBu
Max input (line): +22 dBu
Channel fader range: +10 dB to -85 dB
Aux Send gain range: off to +15 dB
Equalization
Hi shelving: 12 kHz +/- 15 dB, Q fixed at 2 oct.
Mid bell: 2.5 kHz +/- 15 dB, Q fixed at 2 oct.
Lo shelving: 80 Hz +/- 15 dB, Q fixed at 2 oct.
Lo Cut filter: -3 dB at 75 Hz, 18 dB/oct.
Main Mix Section
Noise: bus noise, fader 0 dB, channels muted:
-100.0 dBr (ref.: +4 dBu), fader 0 dB, all input channels assigned and
set to Unity Gain: -88.5 dBr (ref.: +4 dBu)
Max output: +28 dBu balanced XLR,
+22 dBu unbalanced, 1/4" jacks
Aux Returns: gain range off to Unity to +20 dB
Aux Sends max out: +22 dBu
General
Distortion: (THD&N) 0.007 %, at +4 dBu, 1 kHz, bandwidth 80 kHz
below 0.02 %, 22 Hz - 22 kHz normal operating levels, any input to any output, bandwidth 80 kHz
Frequency Response: 10 Hz - 120 kHz +/- 3 dB, any input to any output
Power Supply
External Power Supply: USA/Canada 115 V ~, 60 Hz, power supply MXUL2
U.K./Australia 240 V ~, 50 Hz, power supply MXUK2
Europe 230 V ~, 50 Hz, power supply MXEU2
Japan 100 V ~, 60 Hz, power supply MXJP2
Physical
Dimensions (H x W x D): 1.34/3.31 x 11.42 x 14.49 in. (34/84 x 290 x 368 mm)
Net weight: approximately 3.9 kg (PSU not included)
Mic input: electronically balanced, discrete input configuration
Mic E.I.N.: (22 Hz - 22 kHz) -129.5 dBu, 150 Ohm source
-117.3 dBqp, 150 Ohm source
-132.0 dBu, input shorted
-122.0 dBqp, input shorted
Distortion: (THD&N) 0.007% at +4 dBu, 1 kHz, Bandwidth 80 kHz
Gain: range +10 dB to +60 dB
Max input: (Mic) +12 dBu
Line input: electronically balanced
Sensitivity range: +10 dBu to -40 dBu
Max input (line): +22 dBu
Channel fader range: +10 dB to -85 dB
Aux Send gain range: off to +15 dB
Equalization
Hi shelving: 12 kHz +/- 15 dB, Q fixed at 2 oct.
Mid bell: 2.5 kHz +/- 15 dB, Q fixed at 2 oct.
Lo shelving: 80 Hz +/- 15 dB, Q fixed at 2 oct.
Lo Cut filter: -3 dB at 75 Hz, 18 dB/oct.
Main Mix Section
Noise: bus noise, fader 0 dB, channels muted:
-100.0 dBr (ref.: +4 dBu), fader 0 dB, all input channels assigned and
set to Unity Gain: -88.5 dBr (ref.: +4 dBu)
Max output: +28 dBu balanced XLR,
+22 dBu unbalanced, 1/4" jacks
Aux Returns: gain range off to Unity to +20 dB
Aux Sends max out: +22 dBu
General
Distortion: (THD&N) 0.007 %, at +4 dBu, 1 kHz, bandwidth 80 kHz
below 0.02 %, 22 Hz - 22 kHz normal operating levels, any input to any output, bandwidth 80 kHz
Frequency Response: 10 Hz - 120 kHz +/- 3 dB, any input to any output
Power Supply
External Power Supply: USA/Canada 115 V ~, 60 Hz, power supply MXUL2
U.K./Australia 240 V ~, 50 Hz, power supply MXUK2
Europe 230 V ~, 50 Hz, power supply MXEU2
Japan 100 V ~, 60 Hz, power supply MXJP2
Physical
Dimensions (H x W x D): 1.34/3.31 x 11.42 x 14.49 in. (34/84 x 290 x 368 mm)
Net weight: approximately 3.9 kg (PSU not included)
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Web: https://www.behringer.com/service.html
Web: https://www.behringer.com/service.html
Reviews
Submitted May 31, 2003
Behringer MX1604A 12-Channel Mixing Console Customer Review
Should this mixer wear out...I would buy another one just like it!
Sound
Strangely enough, I get more headroom out of this mixer than other Behringer Euro series mixers. Sends pretty clean signals.
Features
For the price, you're not going to get anything better out of a mixer.
Quality
I carry this mixer around with me constantly. This is my sub mix for everything from my stage rig to the main mix. Still rock solid.
Value
I actually got this item on sale for $100, but would've paid more for it.
The Wow Factor
It's sleek, compact, and shiny with a bunch of little knobs and blinky lights!
30 of 34 people (88%) people found this review helpful. Did you?
