Audio-Technica AT81CP Cartridge, P-Mount

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
Audio-Technica AT81CP Cartridge, P-Mount, New, Main

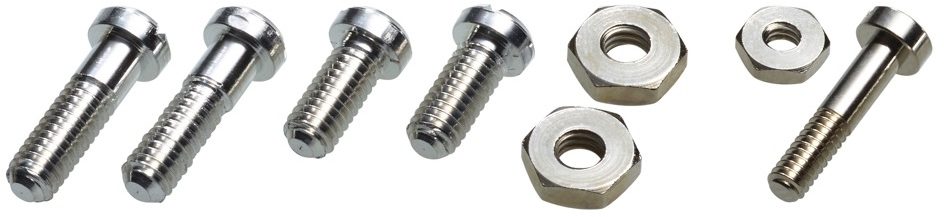

Audio-Technica AT81CP Cartridge, P-Mount, New, Screws
Audio-Technica AT81CP Cartridge, P-Mount, New, Main Audio-Technica AT81CP Cartridge, P-Mount, New, Screws
Get the full 20 Hz - 20 kHz audible spectrum of clean, clear audio with the Audio-Technica AT81CP 0.6 mil conical cartridge for P-mount vinyl turntables.

The Audio-Technica AT81CP is a 0.6 mil conical cartridge that fits P-mount turntables.

- Frequency Response: 20-20,000 Hz
- Channel Separation: 18 (dB at 1 kHz)
- Vertical Tracking Force: 1.0-1.5 g (1.25 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Output: 3.5 mV (1 kHz, 5 cm/sec.)
- Channel Balance: 2.5 dB (1 kHz)
- Stylus Shape: 0.6 mil conical
- Cantilever: Carbon fiber-reinforced ABS
- Mount: P-mount
- Replacement Stylus: ATN81CP

- Coil impedance: 2.8 k ohms (1 kHz)
- DC resistance: 410 ohms
- Recommended load capacitance: 100 to 200 pF
- Coil inductance: 400 mH (1 kHz)
- Vertical tracking angle: 20#
- Dimensions: 15.3 mm (0.60") H x 10.0 mm (0.39") W x 35.1 mm (1.38") D
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.06 lbs
Shipping Dimensions: 4 x 3 x 1 in
Manufacturer Part Number (MPN): AT81CP

For support or warranty questions, please contact the manufacturer:
Phone: 330-686-2600 x5000
Email: audio-solutions@atus.com

Be the first to rate and review this product.

New

$29.00
Reserve Now
Preorder Today
FREE -Day Shipping!
Get it  for
Get it by if you order within
Shipping to
Special Return Conditions
