Audix Triangle Microphone Package
No longer available at zZounds

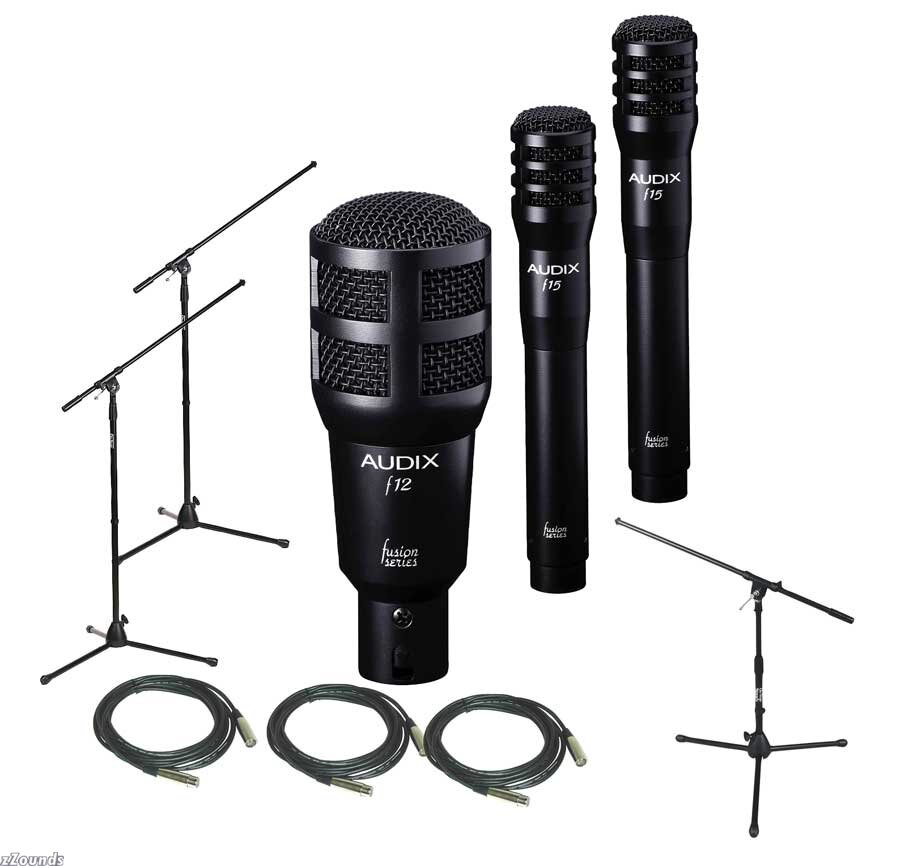

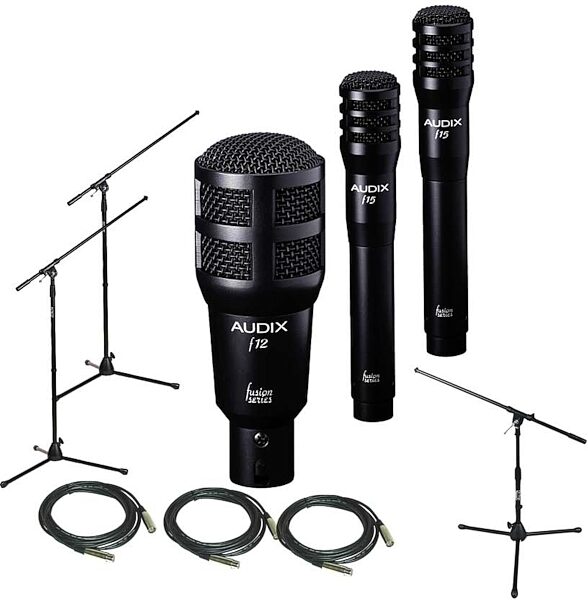

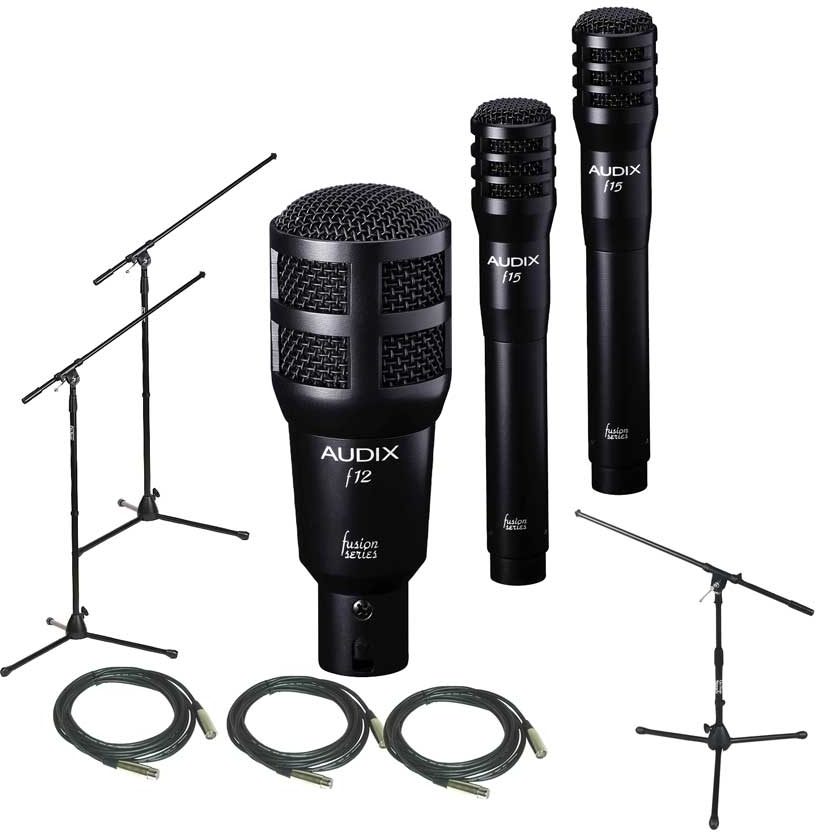

Includes: 2 x F15, 1 x F12, 2 boom stands, 1 mini-boom stand, clips, and cables.
Overview
F-12
Applications: Kick Drum, Floor Tom, Djembe
Features: Extended low end response for fat, punchy sound
F-15
Applications: Cymbals, Overheads, Hi-hat, Goodie Table
Features: Captures wide sound field of the cymbals and transients. Adds dimension and realism
Applications: Kick Drum, Floor Tom, Djembe
Features: Extended low end response for fat, punchy sound
F-15
Applications: Cymbals, Overheads, Hi-hat, Goodie Table
Features: Captures wide sound field of the cymbals and transients. Adds dimension and realism
Specs
F-12 Specifications
Transducer Type: dynamic
Frequency Response: 40 Hz - 10 kHz
Polar Pattern: cardioid
Output Impedance: 250 ohms
Open Circuit Sensitivity (1k @ 94dB SPL): 2.1 mV/Pa
Capsule Technology: Double dome
Maximum SPL: 135dB
Off-axis rejection: >20dB
Housing: Die-cast zinc, black e-coat
Weight: 7.4 oz
F-15 Specifications
Transducer Type: Condenser, 9 - 52 volts phantom
Frequency Response: 100 Hz - 20 kHz
Polar Pattern: Cardioid
Output Impedance: 200 ohms
Open Circuit Sensitivity (1k @ 94dB SPL): 9.3 mV/Pa
Capsule Technology: Back plate electret
Maximum SPL: 135dB
Off-axis rejection: >15dB
Housing: Die-cast zinc, black e-coat
Weight: 6.5 oz
Transducer Type: dynamic
Frequency Response: 40 Hz - 10 kHz
Polar Pattern: cardioid
Output Impedance: 250 ohms
Open Circuit Sensitivity (1k @ 94dB SPL): 2.1 mV/Pa
Capsule Technology: Double dome
Maximum SPL: 135dB
Off-axis rejection: >20dB
Housing: Die-cast zinc, black e-coat
Weight: 7.4 oz
F-15 Specifications
Transducer Type: Condenser, 9 - 52 volts phantom
Frequency Response: 100 Hz - 20 kHz
Polar Pattern: Cardioid
Output Impedance: 200 ohms
Open Circuit Sensitivity (1k @ 94dB SPL): 9.3 mV/Pa
Capsule Technology: Back plate electret
Maximum SPL: 135dB
Off-axis rejection: >15dB
Housing: Die-cast zinc, black e-coat
Weight: 6.5 oz
