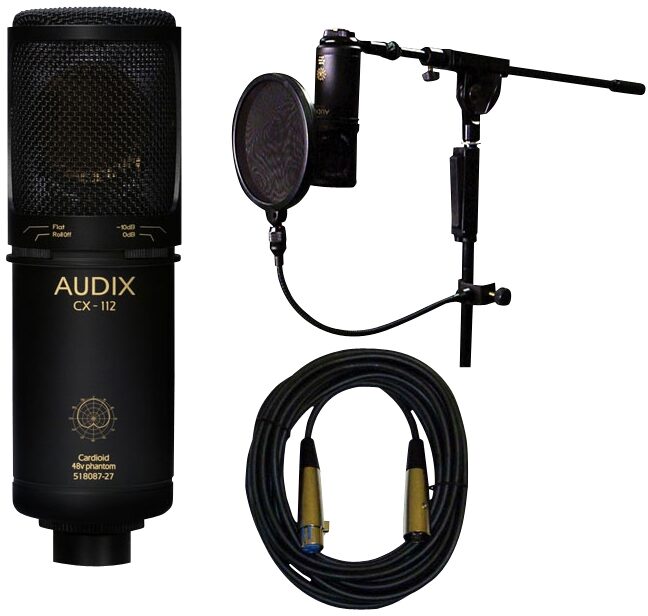

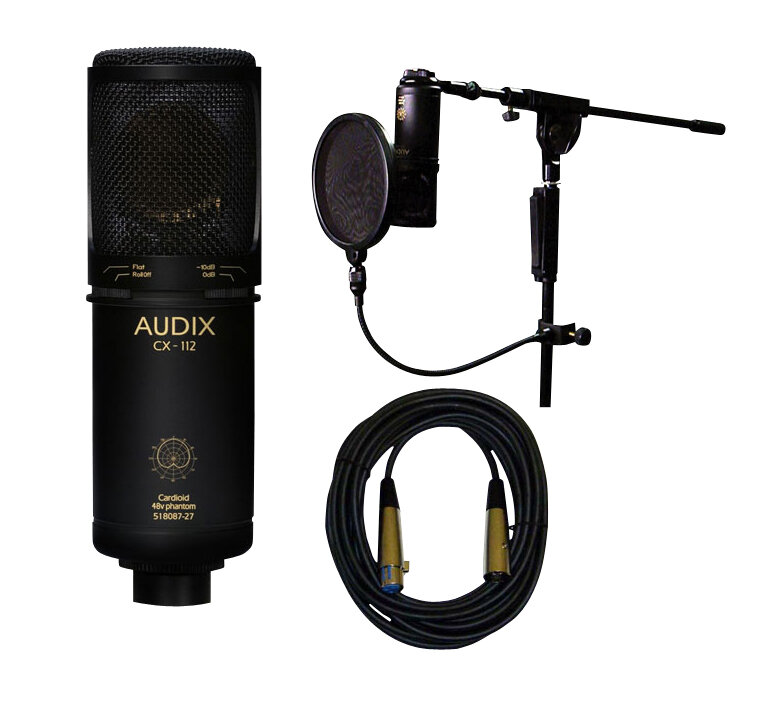

Audix CX-112 Large-Diaphragm Studio Condenser Microphone

No longer available at zZounds
zZounds Gear Experts Say...
Perfect your sound in the studio or on the stage with the smooth, uniform frequency response of the Audix CX-112.

The Audix CX-112, a large-diaphragm condenser microphone with a contemporary design and excellent performance characteristics, is an exceptional tool for for professional audio production, project studios and live stage performances. Delivering a smooth, uniform frequency response from 20 Hz - 20 kHz, the Audix CX112 offers a rich, full-bodied sound delivered by its one-inch capsule.

Features

- Gold-sputtered diaphragm
- Low noise electronics
- -10 dB pad and bass roll-off
- Rich warm tones -- ideal for digital recording
- High power handling of 145 dB SPL
- Adjustable metal clip allows for secure positioning

The Audix CX-112 is equipped with a bass roll-off filter to help eliminate rumble and hum in the lower frequencies and a -10 dB pad to achieve higher sound pressure levels without distortion.

A perfect candidate for a wide variety of acoustic instruments, the Audix CX-112 will handle vocals, string sections, guitar, ensembles, guitar cabinets, ambient room miking and live stage.

The Audix CX-112, which is designed with discreet low noise preamp circuitry, operates on phantom power of 48-52 volts. Optimum results will be achieved by using the Audix CX-112 with a high quality mic preamplifier and premium quality microphone cable.

Applications

- Studio vocals, lead and backing
- Voiceover
- Choir
- Ambient room mic
- Drum overheads
- Orchestra
- Bells, chimes, marimba, vibes
- Acoustic instruments
- Electric guitar cabinets

- Transducer Type: Condenser
- Capsule Technology: 1.07 inches/27mm Gold Vapor Diaphragm
- Frequency Range: 20 Hz - 20 kHz (+/- 3 dB)
- Polar Pattern: Cardioid
- Output Impedance: 200 Ohms
- Sensitivity: 14 mV / Pa at 1k
- Noise Floor: 18 dB (A weighted)
- Signal to Noise Ratio: 76 dB
- Power Requirements: 48-52 volts phantom
- Maximum SPL: >=145 dB
- Dynamic Range: 127 dB
- Cable/Connector: 3 pin gold plated male XLR
- Polarity:
- Positive pressure on diaphragm
- Produces positive voltage on pin 2
- Relative to pin 3 of output
- Housing / Finish: Brass / Black satin
- Weight: 450 g / 16 ounces
- Length: 163 mm / 6.42 inches
- Included Accessories:
- Adjustable one piece metal clip
- Foam-lined wood case
