ART Precision Phono Preamp

zZounds Gear Experts Say...

The ART Precision Phono Preamp is perfect for those looking to connect their turntable rigs to a PA or stereo quickly and easily, without unwanted noise!

Overview

ART is proud to introduce the Precision Phono Preamp for those seeking to connect their turntable to PA or stereo in one quick and easy step. This standalone phono preamp interfaces both types of turntable cartridges Moving Coil (MC) and Moving Magnet (MM) to a wide variety of audio systems.

The Precision Phono Preamp's extraordinarily low noise amplifier allows connection to MC cartridges without picking up noise or distortion that transformers can exhibit. The audio is kept pristine with a low-cut filter to remove rumble and low frequency feedback, commonly undesirable for DJ's and home use.

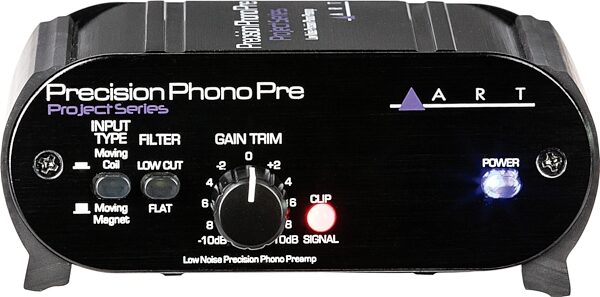

Analog inputs on the ART Precision Phono Pre amp are switchable between Moving Magnet and Moving Coil. The unit changes both the gain and the cartridge loading to suit the selected cartridge. The front gain trim control with the signal present/clip LED allows the user to optimize the output for a wide range of cartridges.

Specs

Connections: 2 x RCA Inputs
Outputs: 2 x RCA Outputs
Input Impedance: 47 Kilohms / 100 pF (Moving Magnet), 100 Ohms (Moving Coil)
Maximum Input Level: 150 mV (1 kHz, MM Mode), 15 mV (1 kHz, MC Mode)
Maximum Output Level: 2.5 VRMS / +10 dBu
Max Gain: 43 dB (Moving Magnet), 63 dB (Moving Coil)
Frequency Response: 20 Hz to 20 kHz (+/- 0.5 dB)
Low Cut Filters: 22 Hz, 2-Pole
THD: < 0.0010% (Typical)
EIN: 300 mV, -127 dBu
Power Requirements: 12 VDC, 150 mA, 9 VAC / 500 mA

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 1.71 lbs; Shipping Dimensions: 9 x 6 x 4 in; Manufacturer Part Number (MPN): PrecisionPhono
Open Box (Like New): Shipping Weight: 1.71 lbs; Shipping Dimensions: 9 x 6 x 4 in; Manufacturer Part Number (MPN): PrecisionPhono
