ART DJ PRE II Phono Preamp with RIAA EQ Curve


zZounds Gear Experts Say...
Connect your turntable to your audio system with this RIAA phono preamp. The ART DJ PRE II offers a switchable low-cut filter, gain trim and stereo RCA I/O.
Overview

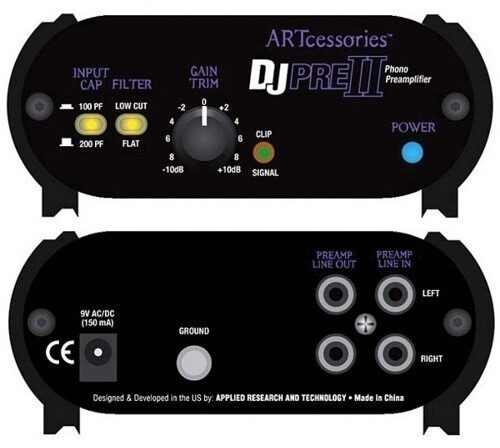

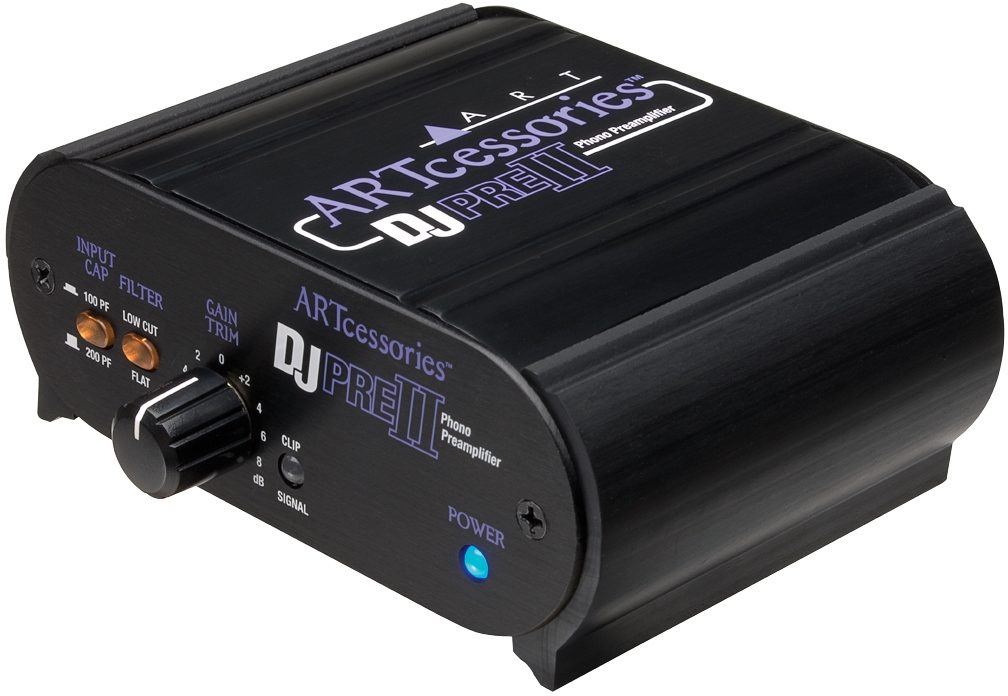

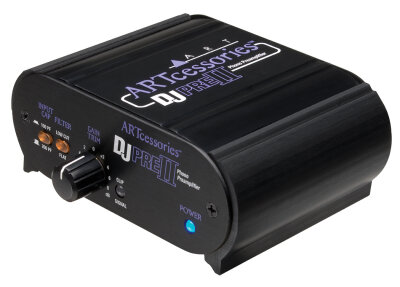

The DJ PRE II is a high quality phono preamp designed for your home and studio. It acts as an interface between your turntable and your audio recording system. The analog input capacitance can be switched between 100pf and 200pf to optimize your phono cartridge response. A switchable low cut filter removes rumble while leaving the audio pristine. The front gain trim control and signal/clip LED allow you to optimize the preamps gain for a wide range of input sources. The built-in low noise phono preamp circuitry is highly accurate and precisely conforms to the RIAA standard. The Line Output jacks are low impedance and can work with any sound card. Housed in an all aluminum black anodized case, the DJ PRE II can be powered by a wide variety of external supplies. If you need to amplify and EQ your vinyl records to interface with your audio workstation, sound card, or main monitor system, the DJ PRE II gives you flawless audio reproduction in a rugged and reliable package. Includes power adapter.
Specs
Frequency Response: 10Hz 50kHz, +/-.5dB
THD: .01% Typical @ 1kHz
Hum and Noise (S/N): >90dB below clipping
Input Impedance: 47k Ohms in parallel with
either 100pF or 200pF
Maximum Input Level: 40mVrms @1kHz
Maximum Gain: 45dB @ 1kHz
Input / Output Connections: RCA
Maximum Output Level: +6dBu (1.4Vrms)
Filter Type/Response: Switchable, Low Cut,
-3dB @ 22Hz
Power Requirements: Supplied adapter, or 7-12V DC or 9-12V AC
@ 150mA
Dimensions: 1.75"H x 4.2"W x 3.5"D
(44.5mm x 107mm x 89mm)
Weight: 1.25 lbs. (.57kg)
THD: .01% Typical @ 1kHz
Hum and Noise (S/N): >90dB below clipping
Input Impedance: 47k Ohms in parallel with
either 100pF or 200pF
Maximum Input Level: 40mVrms @1kHz
Maximum Gain: 45dB @ 1kHz
Input / Output Connections: RCA
Maximum Output Level: +6dBu (1.4Vrms)
Filter Type/Response: Switchable, Low Cut,
-3dB @ 22Hz
Power Requirements: Supplied adapter, or 7-12V DC or 9-12V AC
@ 150mA
Dimensions: 1.75"H x 4.2"W x 3.5"D
(44.5mm x 107mm x 89mm)
Weight: 1.25 lbs. (.57kg)
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 1.21 lbs
- Shipping Dimensions: 10 x 5 x 3 in
- Manufacturer Part Number (MPN): DJPRE-2
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 716-297-2920
Web: https://www.artproaudio.com/support/
Phone: 716-297-2920
Web: https://www.artproaudio.com/support/
Reviews
Reviewers gave this product an overall rating of 4.5 out of 5 stars.
(28 ratings)
Submitted September 28, 2011 by a customer from yahoo.co,
"Good audio gear doesn't have to be expensive..."
Overall, it's just crazy good for the price. I'm sure there's some higher-end stuff out there that would sound a little better, but I've tried a few more expensive phono stages that weren't as good. I'm very happy with it and I'm done looking to upgrade. On top of that, the variable capacitance and rumble filter are really nice features you don't always get, even for significantly more money. This one's a no-brainer, unless you have a high-end system and are willing to spend much more.
Sound
This thing sounds better than it has a right to for the money. I've bought and returned several "budget audiophile" phono stages I didn't like as much as the ART. Nice, even tonal balance and reasonably open sound... Decent bass weight for a budget phono stage.
Features
Two capacitance choices and a switchable rumble filter can come in handy and are very nice bonuses at this price. The signal / clipping indicator is over the top for the price too. The gain control can be a little "tweaky". I would set it while shooting for the most balanced frequency responce, rather than just how loud you want it.
Ease of Use
Just plug it in and it works.
Quality
The quality seems very nice for the price. It's mostly surface mount micro parts, but premium capacitors are used in the signal path for the RIAA EQ. Power regulation and filtering look better than average. The ART comes with… read more a 1000 mA wall wart which is much beefier than what comes with most of the competition. No upgrade necessary for good sound. The signal to noise ratio is excellent.
Value
The ART is an unbeatable value. It outperforms some products selling for three times the price and more.
Manufacturer Support
n/a
The Wow Factor
It's a nice looking little aluminum box. Nice little light show... The power LED can burn your eyes out...
Musical Background:
Hobbyist
Musical Style:
Rock read less
Sound
This thing sounds better than it has a right to for the money. I've bought and returned several "budget audiophile" phono stages I didn't like as much as the ART. Nice, even tonal balance and reasonably open sound... Decent bass weight for a budget phono stage.
Features
Two capacitance choices and a switchable rumble filter can come in handy and are very nice bonuses at this price. The signal / clipping indicator is over the top for the price too. The gain control can be a little "tweaky". I would set it while shooting for the most balanced frequency responce, rather than just how loud you want it.
Ease of Use
Just plug it in and it works.
Quality
The quality seems very nice for the price. It's mostly surface mount micro parts, but premium capacitors are used in the signal path for the RIAA EQ. Power regulation and filtering look better than average. The ART comes with… read more a 1000 mA wall wart which is much beefier than what comes with most of the competition. No upgrade necessary for good sound. The signal to noise ratio is excellent.
Value
The ART is an unbeatable value. It outperforms some products selling for three times the price and more.
Manufacturer Support
n/a
The Wow Factor
It's a nice looking little aluminum box. Nice little light show... The power LED can burn your eyes out...
Musical Background:
Hobbyist
Musical Style:
Rock read less
47 of 49 people (96%) people found this review helpful. Did you?
