Antelope Audio MP8D Microphone Preamplifier and A/D

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
Antelope Audio MP8D Microphone Preamplifier and A/D, Main

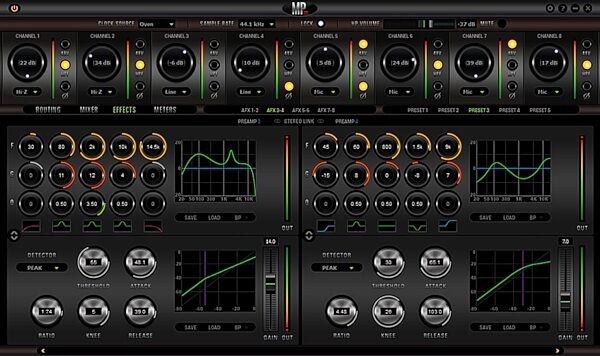

Antelope Audio MP8D Microphone Preamplifier and A/D, AFX
Antelope Audio MP8D Microphone Preamplifier and A/D, Back
Antelope Audio MP8D Microphone Preamplifier and A/D, Meters
Antelope Audio MP8D Microphone Preamplifier and A/D, Mixer

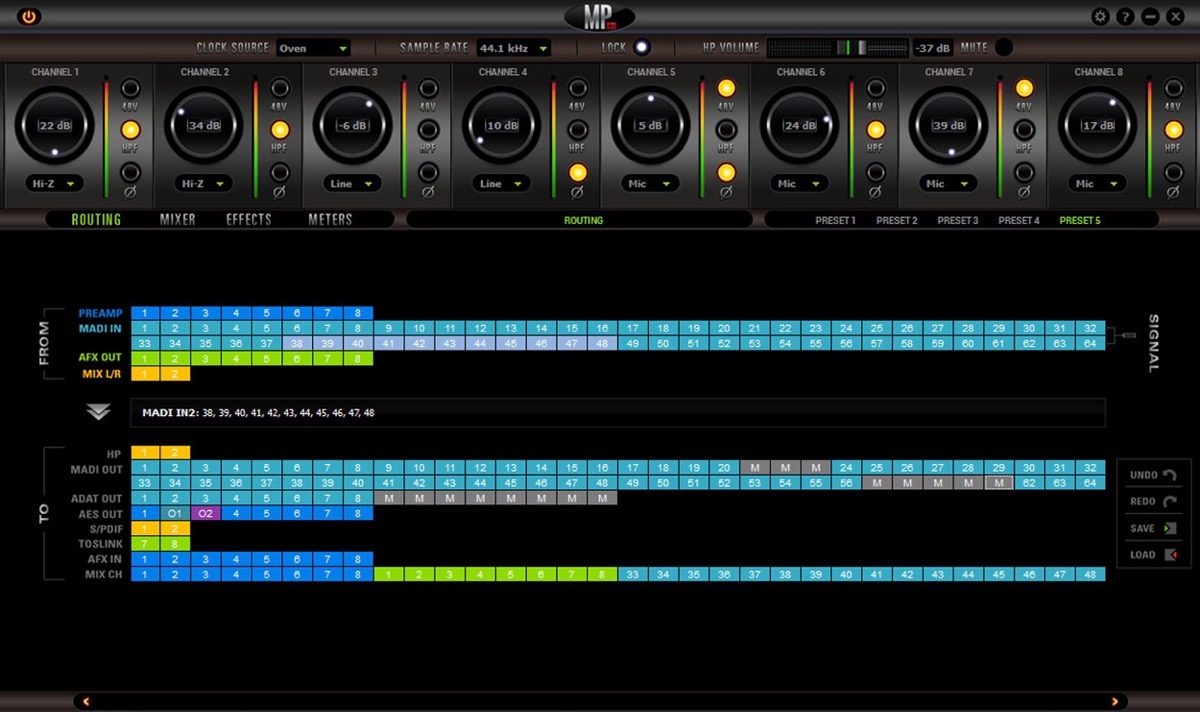

Antelope Audio MP8D Microphone Preamplifier and A/D, Routing
Antelope Audio MP8D Microphone Preamplifier and A/D, Main Antelope Audio MP8D Microphone Preamplifier and A/D, AFX Antelope Audio MP8D Microphone Preamplifier and A/D, Back Antelope Audio MP8D Microphone Preamplifier and A/D, Meters Antelope Audio MP8D Microphone Preamplifier and A/D, Mixer Antelope Audio MP8D Microphone Preamplifier and A/D, Routing
zZounds Gear Experts Say...
The MP8D gives you 8 class-A microphone/line/Hi-Z preamps with world-class Antelope A/D conversion and clocking, and MADI, ADAT, AES/EBU and S/PDIF outputs.

MP8d is an eight-channel class-A microphone preamplifier, which boasts Antelope Audio's integrated world-class A/D conversion. Antelope's converters are widely regarded for their naturally warm, yet sonically accurate sound signature.

This classically rich, yet modernly precise sound is accomplished thanks to Antelope's Acoustically Focused Clocking jitter management algorithm and Oven-Controlled crystal oscillator, along with advanced analog and digital circuit board design, powered by a proprietary power supply.

The MP8d mic pres are combo XLR/TRS connectors, which accept both mic and line level signals. Hi-Z inputs are associated with channels 1 and 2, and are accessible via dedicated TRS connectors on the front panel. Inserts for connecting your favorite effects outboard gear are available on the rear panel.

A high-end headphone amp is accessible from the front panel to provide the convenience of integrated monitoring. The analog connectivity is accomplished with a D-Sub 25 connector directly outputting the mic signals at line level, making MP8d a perfect companion device for Antelope's Orion32 and Zen Studio audio interfaces.

A plethora of digital connectors offer a wide variety of options, providing extreme flexibility and enhanced productivity. MP8d provides S/PDIF, AES/EBU, TOSLINK, ADAT and MADI connections expand the product compatibility and allow for both easy connection to other outboard gear or DAW, as well as cascading two or more MP8d units, expanding the… read more channel count.

Features:

- 8 CLASS-A MIC PRES: 8 Hi-Z, Line and Mic compatible preamps with individual phantom power
- 64-BIT ACOUSTICALLY FOCUSED CLOCKING: A/D enhanced by Antelope's world-renowned jitter management algorithm
- DIGITAL CONNECTIVITY: MP8d features all digital I/O you need - MADI, ADAT, AES/EBU, S/PDIF, TOSLINK
- POWERFUL DSP: Massive parallel DSP for fast routing, low-latency mixing and real-time FX
- 8 CHANNELS: DB25 connector for 8-channel direct microphone output
- SUPREME CLOCKING: Oven-Controlled Oscillator, 2 Word Clock outs, 1 Word Clock in and 1 Atomic Clock in read less

Analog Inputs:
- 8 x Mic / Line on XLR combos on the rear panel
- 2 x Hi-Z (instrument) inputs on TRS on the front panel (Mic inputs 1,2)

Analog Inserts: 2 x Inserts on TRS (inputs 1,2)

Analog Outputs:
- 8 x Lines on DB25 (8 channels)
- 1 x Stereo Headphone outs on TRS (2 channels)

Digital Inputs: 1 x MADI (up to 64CH)

Digital Outputs:
- 1 x MADI (up to 64CH)
- 2 x ADAT (up to 16CH)
- 1 x S/PDIF
- 1 x TOSLINK
- 1 x AES/EBU on DB9 (breaks down to 4 x XLR connectors, cable not included)

Clocking System:
- 4th Generation Acoustically Focused Clocking
- 64-bit DDS
- Oven Controlled Crystal Oscillator

USB I/O: 2.0 Hi-Speed, Type B, only for control

Atomic Clock: 1 x 10M Input @ 75 Ohms 1Vpp on BNC

Word Clock:
- 1 x Input @ 75 Ohms 3Vpp on BNC 32-192 kHz
- 2 x Output @ 75 Ohms 3Vpp on BNC 32-192 kHz

A/D Converter:
- Dynamic Range: 120 dB
- THD+N: -110 dB

- Clocking Stability: <+/-0.02ppm, oven controlled at 64.5oC/148.1oF
- Clock Aging: < 1ppm per year
- Clock Calibration: <+/-0.001ppm
- Atomic Clock: 10 MHz
- Sample Rates: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Operating Temperature: 0-50*C/32-122*F
- Weight: 3.3 kg/7.28 lb approx.

Dimensions (Approx):
- Width: 483mm / 19"
- Height: 44mm / 1.75"
- Depth: 230mm / 9.1"

Power Supply
- AC Universal input
- ~95-245 V, 20 Watts Max

- Power Consumption: 20 Watts Max

System requirements


- Windows:
- OS: Windows 7/8/8.1/10
- Disk Space: Minimum 512 MB available disk space
- USB: 1x USB 2.0 Port
- Required USB bandwidth (for firmware update): 80%-90%
- CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
- Memory (RAM): 4GB Minimum (8GB or more Recommended)

- MAC:
- OS X: 10.9/10.10/10.11 (El Capitan 10.11.5 Recommended)
- Disk Space: Minimum 512 MB available disk space
- USB: 1x USB 2.0/3.0 Port
- Required USB bandwidth (for firmware update): 80%-90%
- Memory(RAM): 4GB Minimum (8GB or more recommended)
- CPU: Intel Core 2 Duo (Minimum) Intel Core i3 (TM) or higher (Recommended)

For support or warranty questions, please contact the manufacturer:
Phone: 916-238-1643
Email: support@antelopeaudio.com
Web: https://support.antelopeaudio.com/
