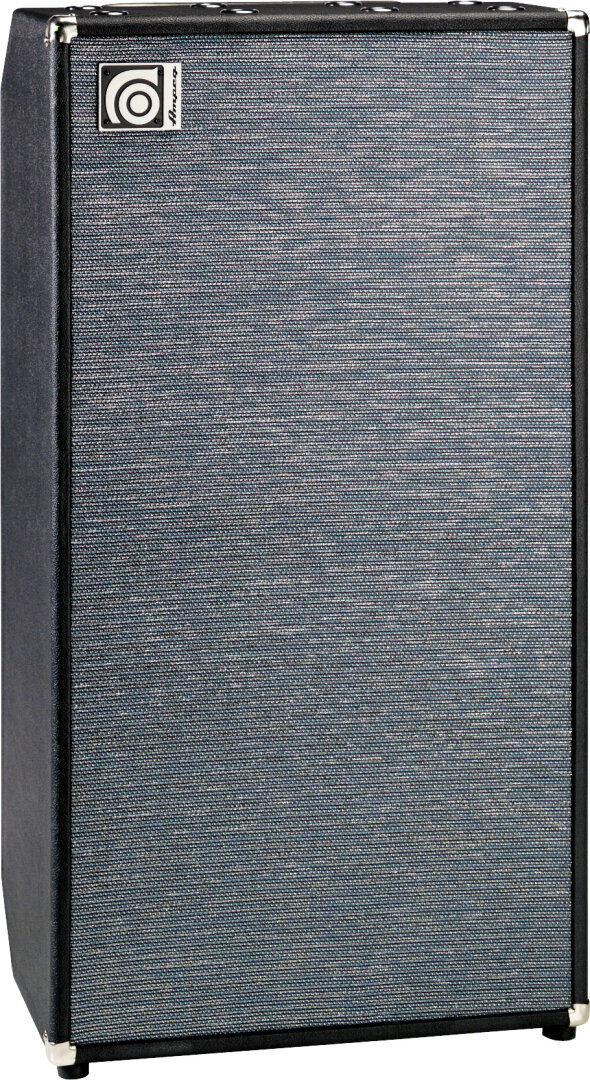

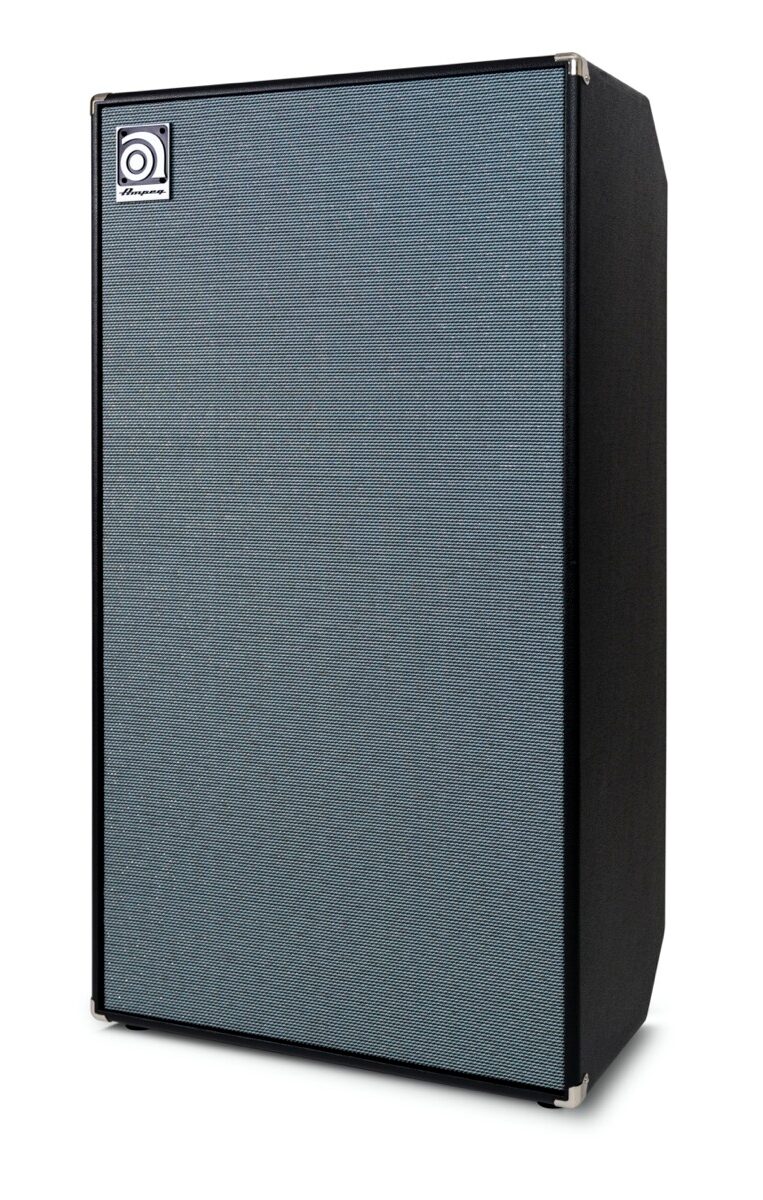

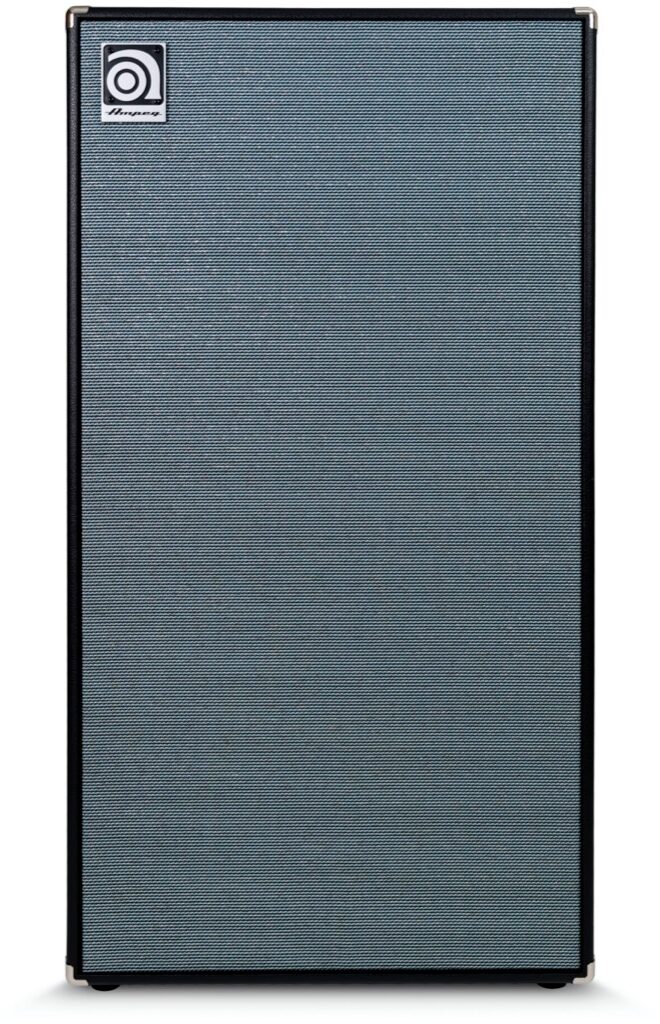

Ampeg SVT-810AV Anniversary Bass Cabinet (800 Watts, 8x10")

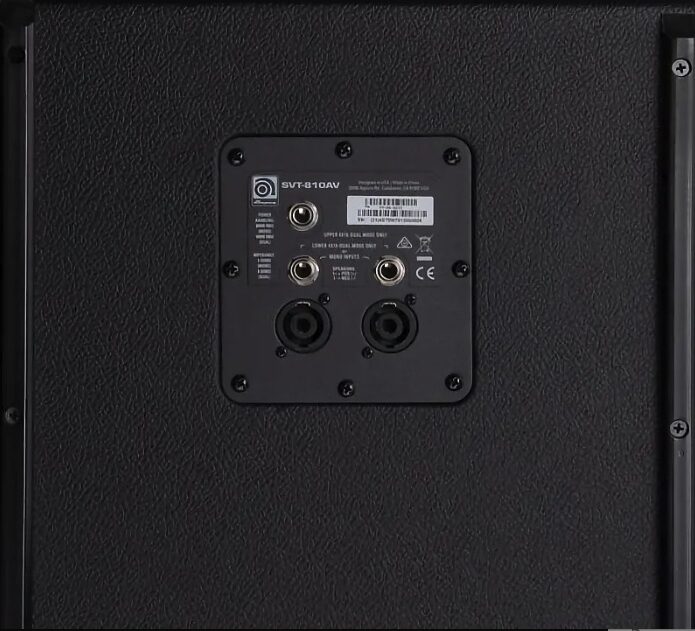

Ampeg SVT-810AV Anniversary Bass Cabinet (800 Watts, 8x10"), New, rear

zZounds Gear Experts Say...

Match your Ampeg SVT head with a cab that will do it justice! The SVT-810AV boasts eight 10" speakers for extreme low end, and handles 800 watts at 4 ohms.

Overview

The Ampeg SVT-810AV Anniversary Bass Cabinet faithfully reproduces the classic 8 x 10 bass cabinet that has reigned for more than 40 years as an uncontested champion of low-end power. This SVT cabinet utilizes Ampeg's celebrated Infinite Baffle design for a distinctive and pronounced tone that has no equal. It pushes 800 watts of power out of two discrete 4 x 10" speaker sets, giving it more than enough power for almost any application, live or recorded.

An SVT-810E with Classic Finishes

The SVT-810AV is identical to the Classic Series SVT-810E, but has a few cosmetic features that pay tribute to the original 1969 Ampeg SVT stack that is still affectionately known to many as "The Fridge." It reproduces this classic look with a vintage metallic sheen fabric covering, and classic hardware details. It utilizes totally-up-to-date electronic componentry in a circuit design that has long since been recognized as timeless.

Up-to-Date Connections

The SVT-810AV has high-quality 1/4-inch and a Neutrik Speakon XLR/TRS jack for maximum I/O versatility in any application.

Don't Mess With a Great Design

The SVT-810AV benefits from the Infinite Baffle design that Ampeg first introduced in 1969. The sound of the Baltic birch plywood enclosure cabinet itself is highly distinctive. It is described by many as more "rounded" than other bass cabs. The design is most distinguished by its use of 8 distinct 10-inch speakers, which many believe delivers greater dynamic range and… read more far faster transient response than cabinets employing combinations of 15-inch or 18-inch speakers. It also moves a lot more air and achieves a far more nuanced sound overall. The result is a sound you can really feel, delivering all the tonal versatility you'll want in your bass cab.

Simple To Transport

The SVT-810AV has heavy-duty recessed wheels and tilt-back handle bars for easy transport. It measures 48 x 26 x 16 and weighs 165 pounds.

Features:

- 8 x 10-inch speakers
- Ampeg AV fit and finish
- Heavy-duty Baltic birch plywood enclosure
- Infinite Baffle design adds punch
- 1/4-inch and Neutrik Speakon jacks
- Rugged recessed wheels and skid rails
- Tilt Back Handle Bar
- 1/4" and Neutrik Speakon Jacks
- Baltic Birch Plywood
- Heavy-Duty Recessed Wheels
- Skid rails
- SVT-AV Head Color-Scheme
- 130 dB Maximum SPL

Specs

Specifications

Dimensions:
48 x 26 x 16

Weight:
165 Pounds

Component 1:

Magnet Weight:
30 oz.
Size:
8 x 10 in.
Voice Coil:
2 in.

Crossover Frequency: n/a

Frequency Response (-3 dB):
58 Hz - 5 Khz

Maximum SPL:
130 dB

Nominal Impedance:
4 Ohms

Program Handling:
1600 Watts

RMS Handling:
800 Watts

Connections:
1/4 Inch and SPeakon

Sensitivity:
100 dB

Usable Low Frequency (-10dB):
40 Hz

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 148.75 lbs; Shipping Dimensions: 52 x 28 x 20 in; Manufacturer Part Number (MPN): 99-030-2711

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 818-575-3600
Web: https://ampeg.com/support/

Ampeg Bass Cabinets Quick Start Guide

Ampeg's Description

Ampeg SVT-810AV Bass Cabinet

It's all about tone. And this is the speaker enclosure they're talking about when they say "SVT cabinet."

Why use eight 10" speakers? Because Ampeg learned early on that 10" speakers work much more efficiently than fifteens or eighteens--and if you put eight 10" speakers together, you can move a much larger column of air. In fact, you'd need five 18" or six 15" speakers to move as much air as the SVT-810AV! And they simply wouldn't be able to respond to transient peaks as quickly as these tens.

The SVT-810AV is still manufactured using the same design dating all the way back to 1969. The Infinite Baffle design of these sealed enclosures produces vast amounts of tightly focused bass. That's why you'll find the SVT-810AV on stage with such artists as Stefan Lessard (Dave Matthews Band), Gail Ann Dorsey (David Bowie, Gwen Stefani Band), Garry Beers (INXS), and far too many others to list here. In the world of high performance bass cabs, the Ampeg SVT-810AV stands tall and proud.
