Allen and Heath SQ 64x64 MADI Card
![Allen and Heath SQ 64x64 MADI Card, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/SQ-MADI-Front-1-1024x683_847362-184a66b082f907777eb415de6875df9c.jpg)
![Allen and Heath SQ 64x64 MADI Card, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/SQ-MADI-in-SQ6-3Quarter-1-1024x683_847362-114b1215a0a90c97660d846f7968d400.jpg)
![Allen and Heath SQ 64x64 MADI Card, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/SQ-MADI-in-SQ6-3Quarter-Left-1-1024x683_847362-9a63b1ccd1df4ddf82c279d27bc3851a.jpg)
![Allen and Heath SQ 64x64 MADI Card, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/SQ-MADI-in-SQ6-Rear-1-1024x676_847362-80d4ad8ce8be85c411452233cbb5b4ee.jpg)
![Allen and Heath SQ 64x64 MADI Card, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/SQ-MADI-in-SQ6-3Quarter-Right-1-1024x683_847362-9036fa5243ab495b73934df68acf91a1.jpg)
Add MADI capability to your Allen and Heath SQ mixer! The A&H SQ 64x64 MADI card adds 64 channels of MADI I/O at either 96 kHz or 48 kHz operation.
Overview

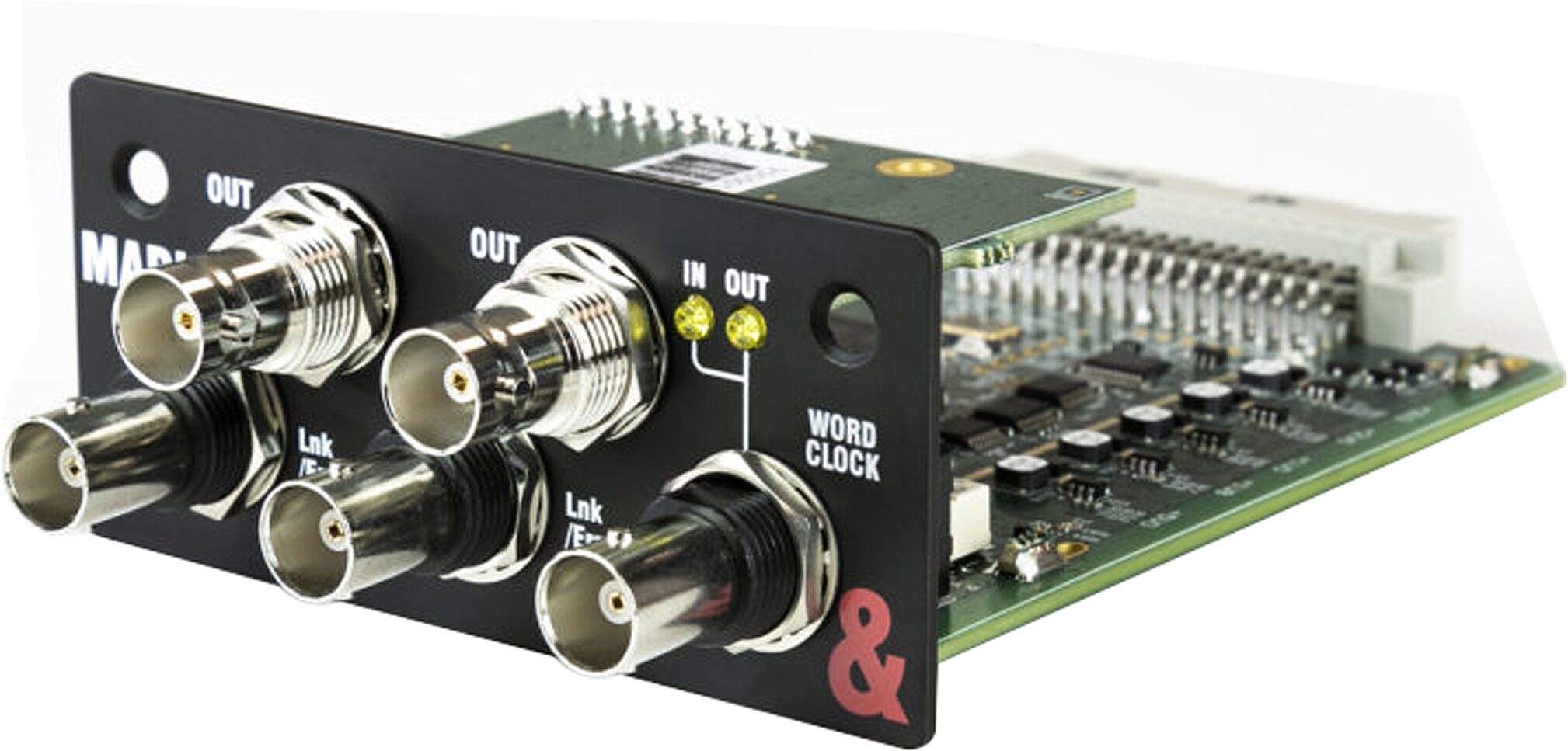

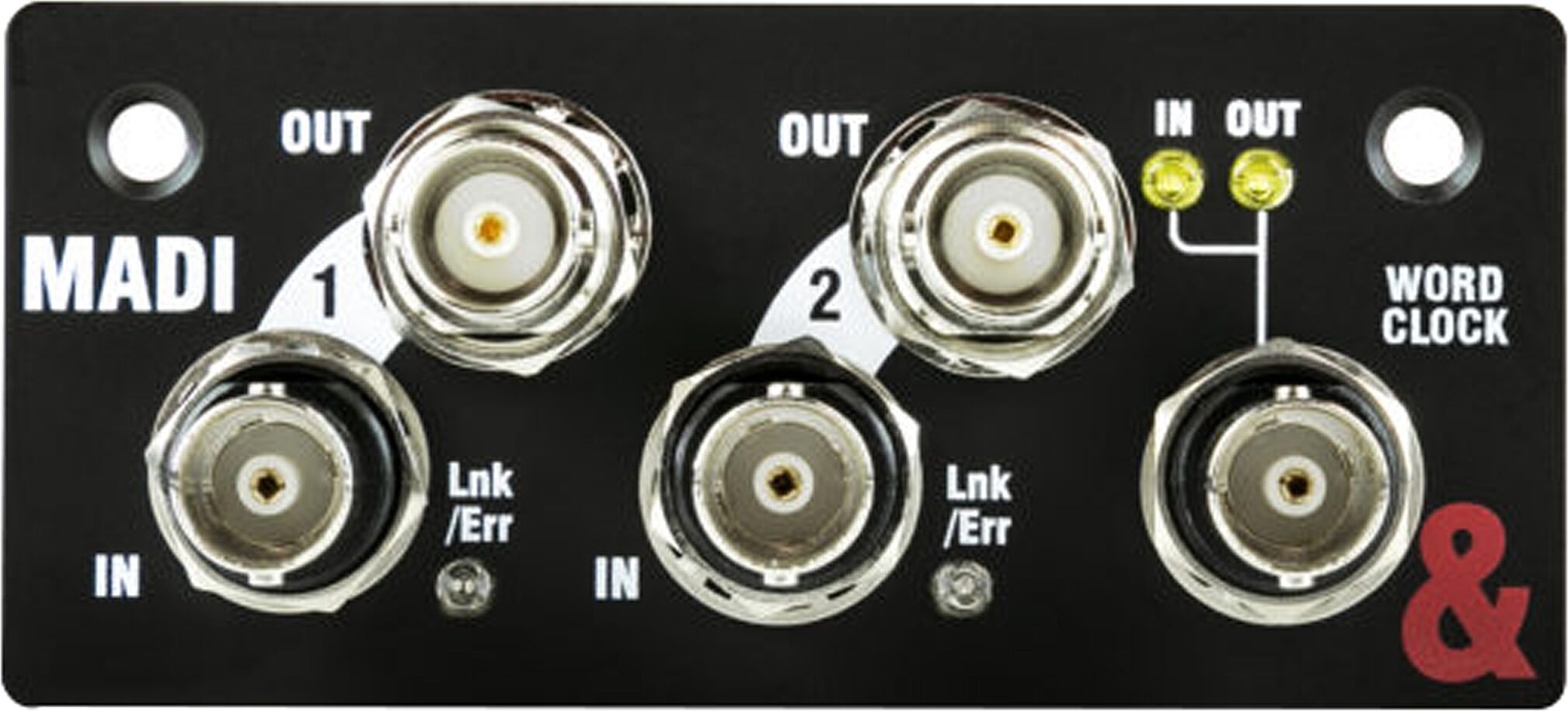

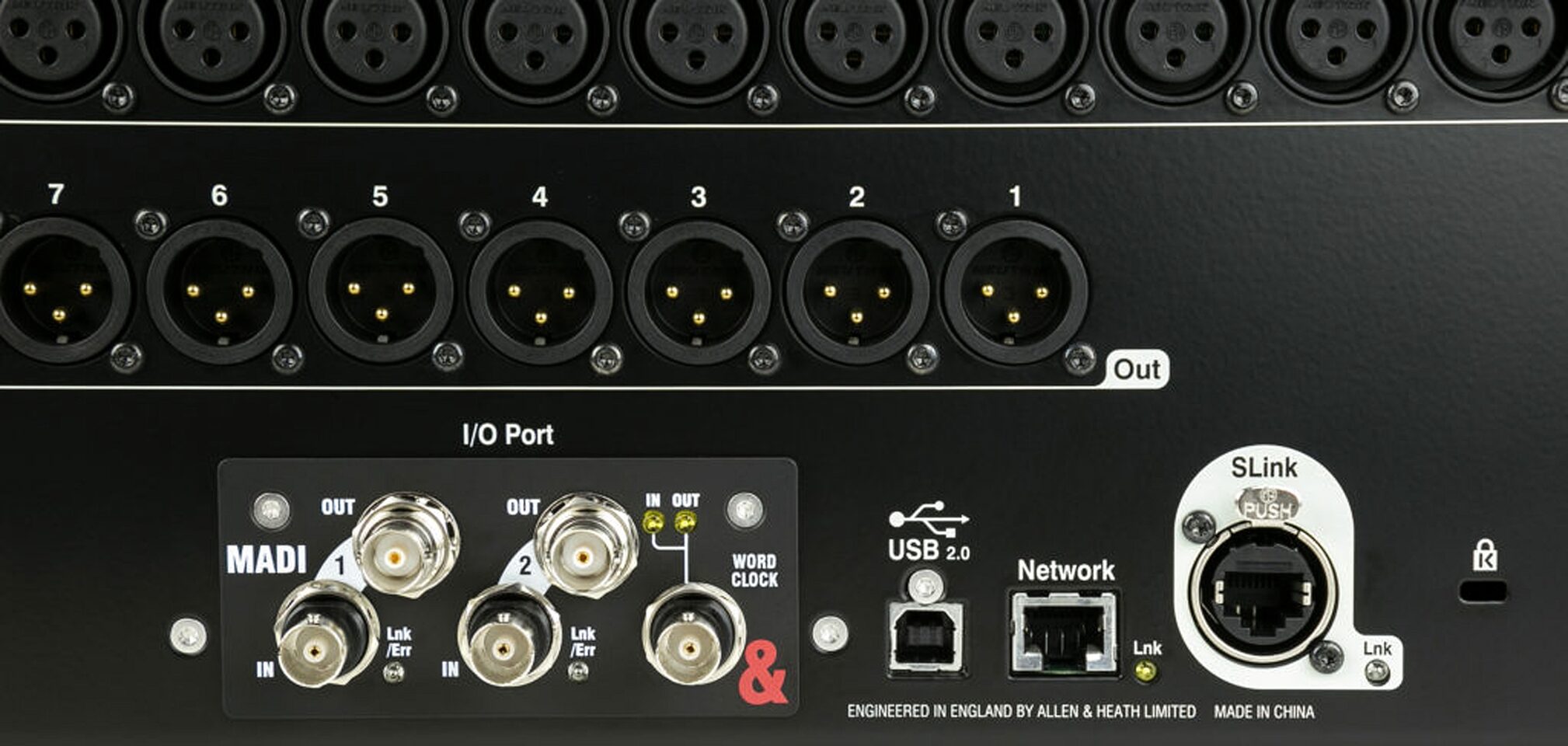

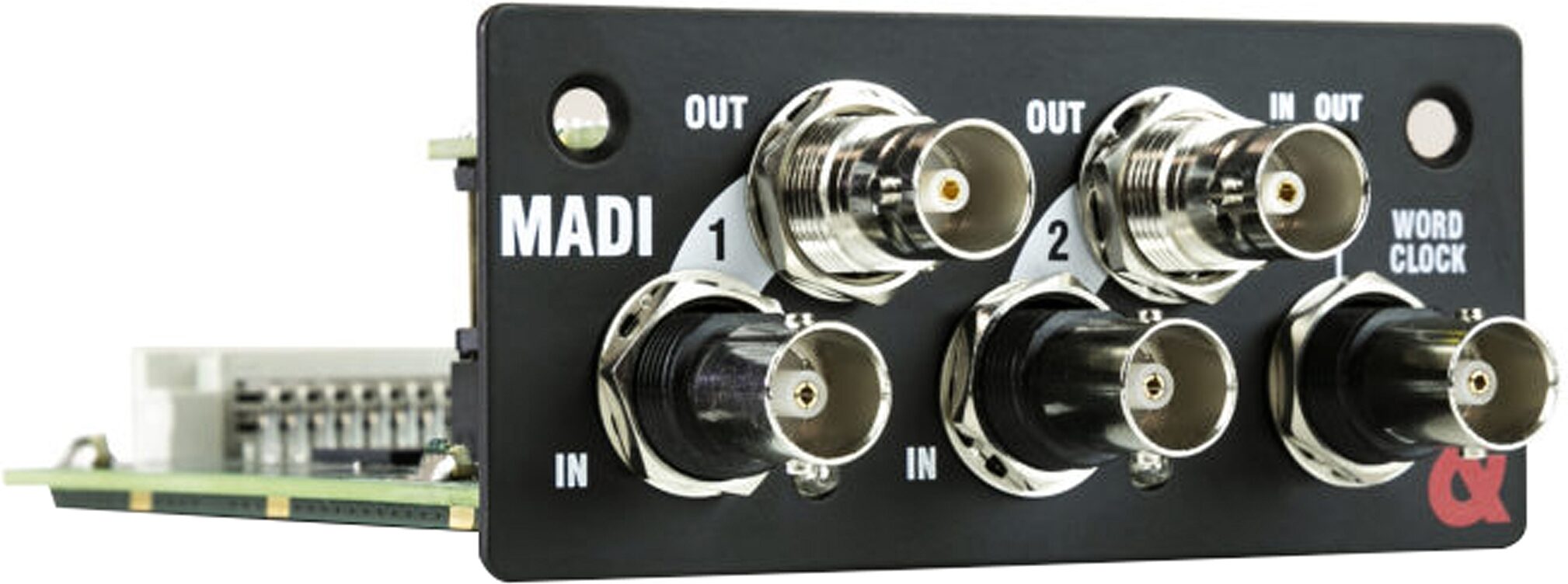

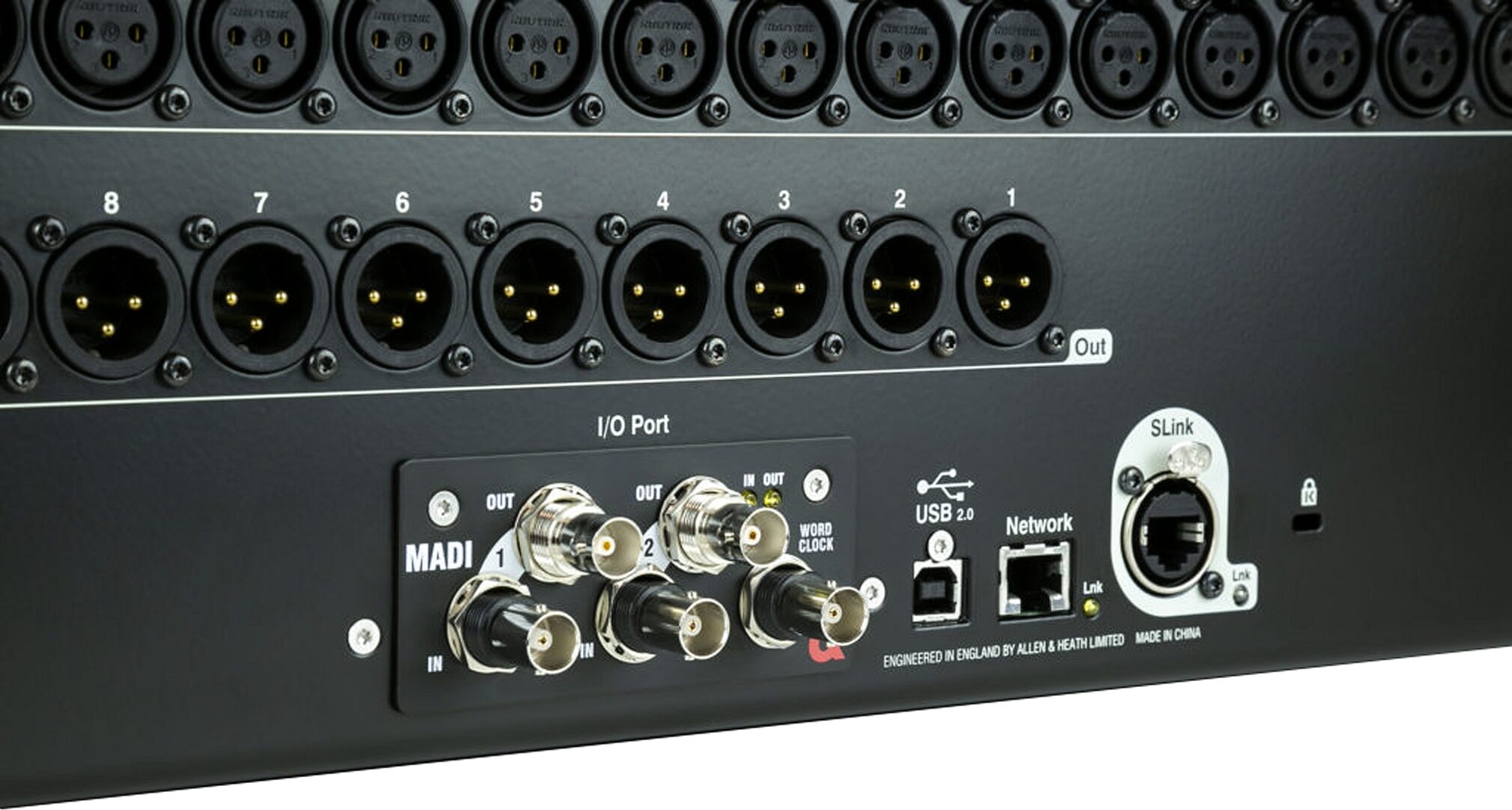

SQ MADI provides any SQ mixer with a 64x64 MADI interface running at either 48kHz or 96kHz. Two BNC inputs pair with two BNC outputs to allow for split or redundant setups while a dual function (in/out) BNC wordclock connection enables the console to sync with other equipment.
SQ MADI enables connection and synchronization with broadcast or recording systems, OB vans, and third-party consoles for high-channel count feeds over coaxial cables.
- 96kHz or 48kHz operation
- Smux or HighSpeed 96kHz modes
- Sync from inputs or separate wordclock
- Console controlled error handling
- 4x BNC connectors (2 links)
- 1x BNC Wordclock I/O
SQ MADI enables connection and synchronization with broadcast or recording systems, OB vans, and third-party consoles for high-channel count feeds over coaxial cables.
Features:
- 64x64 channel digital audio- 96kHz or 48kHz operation
- Smux or HighSpeed 96kHz modes
- Sync from inputs or separate wordclock
- Console controlled error handling
- 4x BNC connectors (2 links)
- 1x BNC Wordclock I/O
Specs
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 1 lbs
- Shipping Dimensions: 10 x 7 x 4 in
- Manufacturer Part Number (MPN): AH-M-SQ-MADI-A
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 800-431-2609
Web: https://www.allen-heath.com/support/
Phone: 800-431-2609
Web: https://www.allen-heath.com/support/
New
$849.00
- 12 x$70.75
