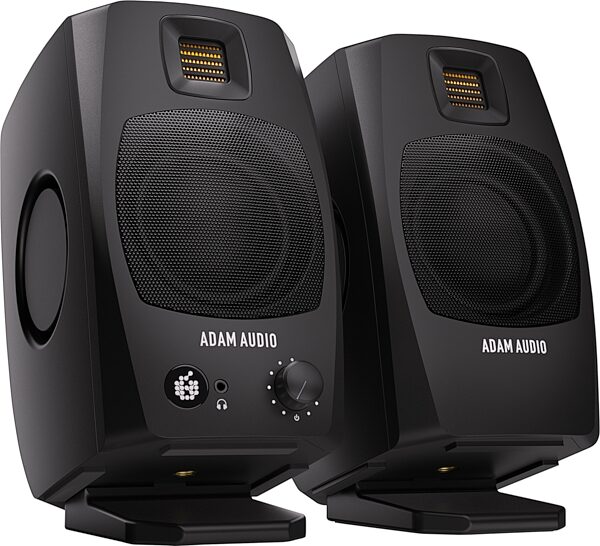

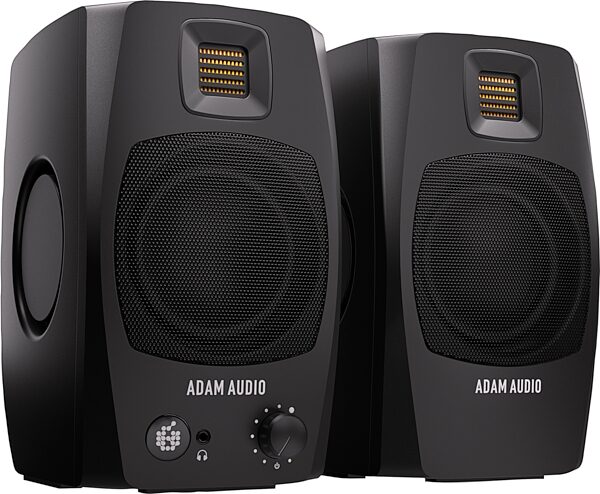

The ADAM Audio D3V is a fully active desktop monitoring system designed for songwriters, producers, and music lovers who want to enjoy ADAM Audio sound quality as conveniently as possible. These active monitors feature the iconic golden ribbon tweeter and stay true to ADAM Audio's German industrial design heritage.


Get a closer look at the D3V in this 3-minute intro from ADAM Audio:


Each active pair features 3.5" aluminum woofers and ferrite magnet system driven by 80 W amplifiers. The woofers are further complemented by dual-sided 3.5" passive radiators which allow the D3V to extend as low as 45 Hz. With 25 years of experience working with ribbon tweeter technology, ADAM Audio has created a compact 1.5" D-ART (Desktop Accelerated Ribbon Tweeter) so D3V customers can enjoy the precise and non fatiguing high-frequency reproduction that their established monitoring systems are known for.

The D3V features a USB-C input which means the monitoring system behaves as a digital output device when connected to a computer and negates the need for an additional audio interface for playback. This plug'n'play functionality extends to mobile devices so high-quality audio can be enjoyed without the compression or conversion normally associated with such connections. The D3V also features balanced 1/4" TRS inputs for more traditional analog audio applications.

The backplate of the left speaker features a range of user-friendly switches to address the common acoustical issues arising… read more from speaker placement, while the front panel includes a headphone socket and volume knob that doubles as a control for the audio input selection, muting, and other functions.

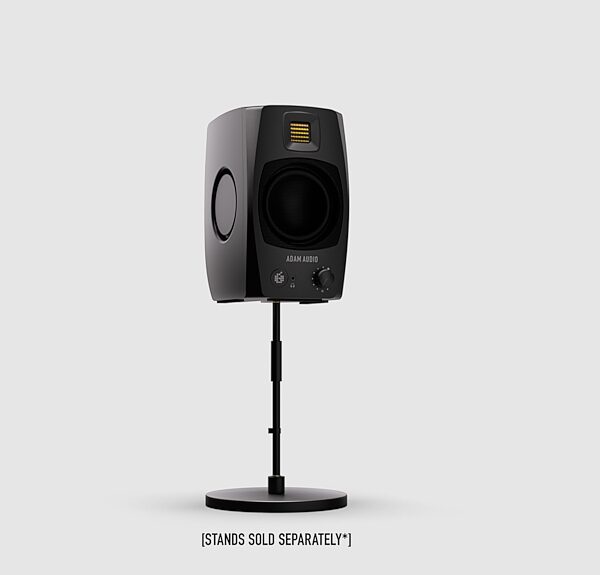

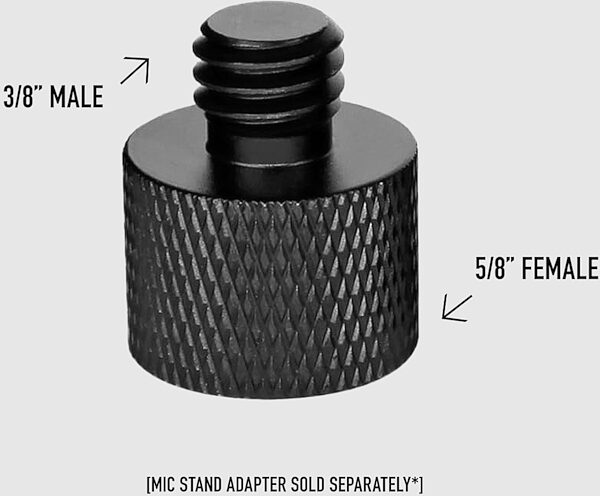

The D3V comes complete with detachable monitor stands that are angled at 15* toward the users' ears. Additionally, there is a standard threaded 3/8" hole for microphone stand mounting on the underside of both monitors.

Features:

- Fully Active Aluminum 3.5" Woofers
- Ferrite Magnet System
- 1.5" D-ART Tweeter
- Dual-sided passive radiators on each speaker
- Direct USB-C Input
- Switchable DSP Room Acoustics
- Balanced Analog Inputs
- Headphone Output
- Monitor Stands & Mounting Options
- High-grade injection-molded ABS Polycarbonate cabinets

Fully Active Aluminum 3.5" Woofers & Ferrite Magnet System
Optimized using ADAM Audio's state-of-the-art Klippel measurement system, the extremely symmetrical voice coil and ferrite magnet system help minimize unwanted distortions and provide a linear motor for the woofer. Each one-piece concave cone is made of ridged, thick aluminum with a long linear excursion range which delivers uncolored sound even at surprisingly high output levels. The D3V is a fully active design with four individual amplifier channels and DSP-managed crossover. The woofers are powered by 80W amplifiers with the link cable carrying an amplified signal to the right speaker.

D-ART Tweeter
A quarter century of ribbon tweeter research and development has led to the creation of ADAM Audio's highly capable 1.5" Desktop Accelerated Ribbon Tweeter. Each diaphragm is hand-folded and glued with 40W amplifiers driving each unit. Like the rest of ADAM Audio's tweeters, the D-ART incorporates crossover fine-tuning which is managed by highly accurate DSP.

Passive Radiators

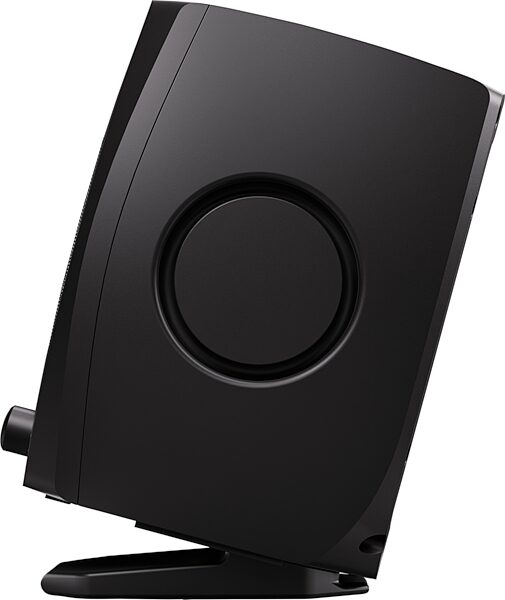

The D3V employs dual-sided passive radiators on each speaker for a total of four per system. Each radiator consists of a stainless-steel plate as the moving mass, and a specially stabilized long-stroke rubber surround for the suspension. Together they reinforce the lowest possible response of the loudspeaker through their interaction with the main woofers, as well as contributing toward the overall SPL of the system.

Direct USB-C Input
The D3V represents ADAM Audio's most convenient monitoring system thanks to the inclusion of a plug'n'play USB-C input. The loudspeakers behave as a digital output device when connected to a computer, mobile, or tablet, which negates the need for an additional audio interface. This direct digital connection facilitates high-quality audio playback without the compression or conversion normally associated with desktop monitors.

DSP Room Acoustics

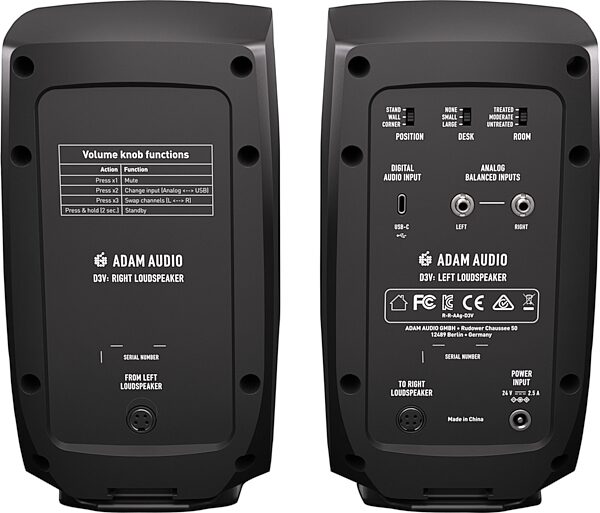

On the backplate of the left speaker you can find three switches to counteract the typical acoustical issues that arise from speaker placement. "POSITION" refers to the fixed position of the loudspeaker in the room. "DESK" refers to the size of the desk in front of the loudspeaker, while "ROOM" refers to the amount of acoustic treatment in the space in which the system is being used.

Balanced Analog Inputs
In addition to the USB-C input, the D3V features analog inputs for traditional audio applications. It allows for balanced connections to audio interfaces as well as direct connections to all kinds of hardware including synthesizers, drum machines, samplers, and DJ mixers. The USB-C or balanced analog inputs can be toggled by pressing the volume knob on the left speaker.

Headphone Output, Monitor Stands & Mounting Options
Functionality and convenience played a major role in the design of the D3V. The front-facing headphone output automatically takes over audio playback when connected, while detachable monitor stands angled at 15* are also included. Additionally, there is a standard threaded 3/8" hole for microphone stand mounting on the underside of both monitors.

Injection-molded Cabinet
The D3V's cabinet is made of high-grade injection-molded ABS Polycarbonate, with thick walls and plenty of bracing to avoid vibrations and unwanted resonances. The rounded shape reduces unwanted sound diffraction at high frequencies, while also paying tribute to ADAM Audio's long-standing industrial design heritage.
