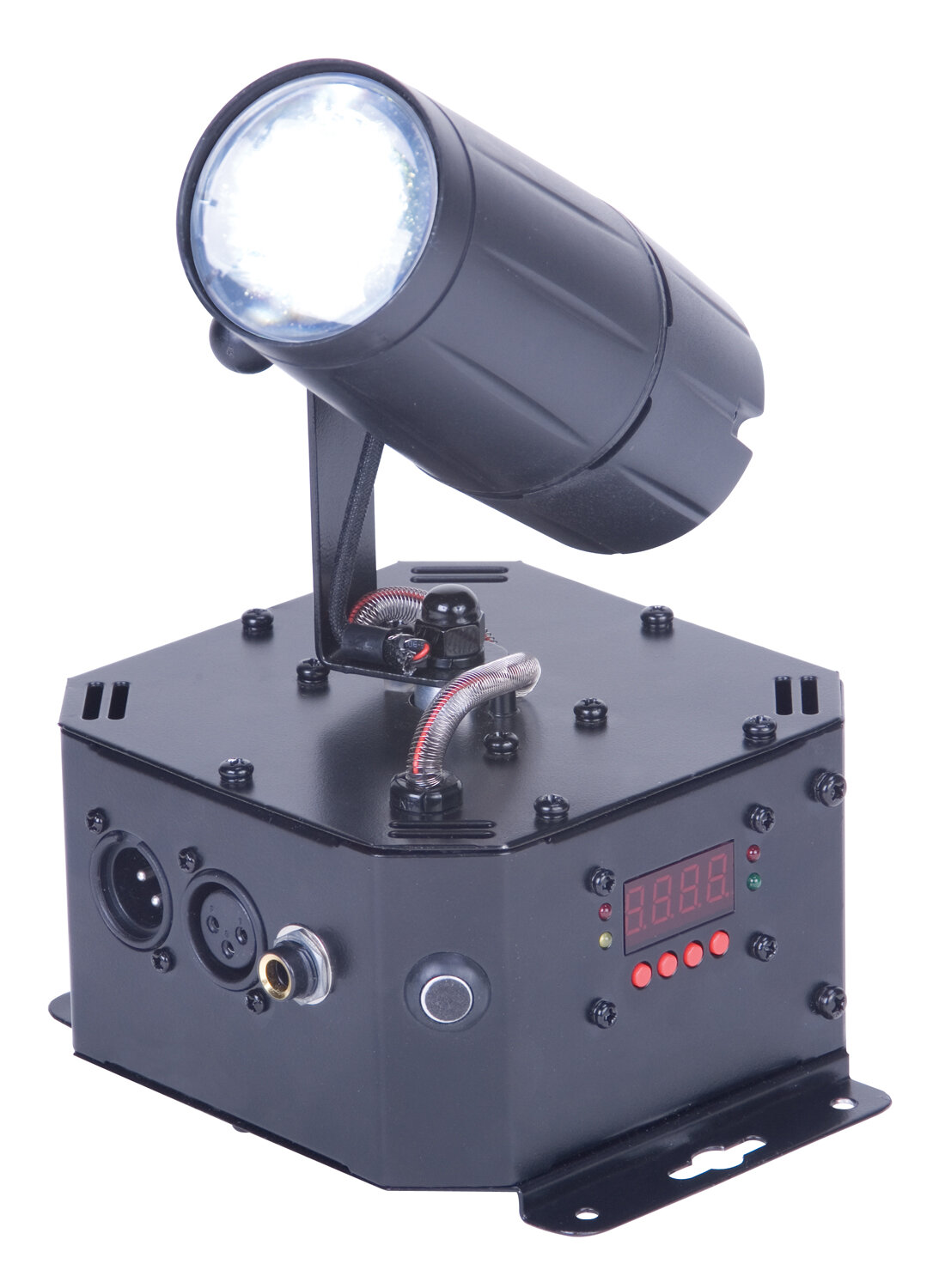

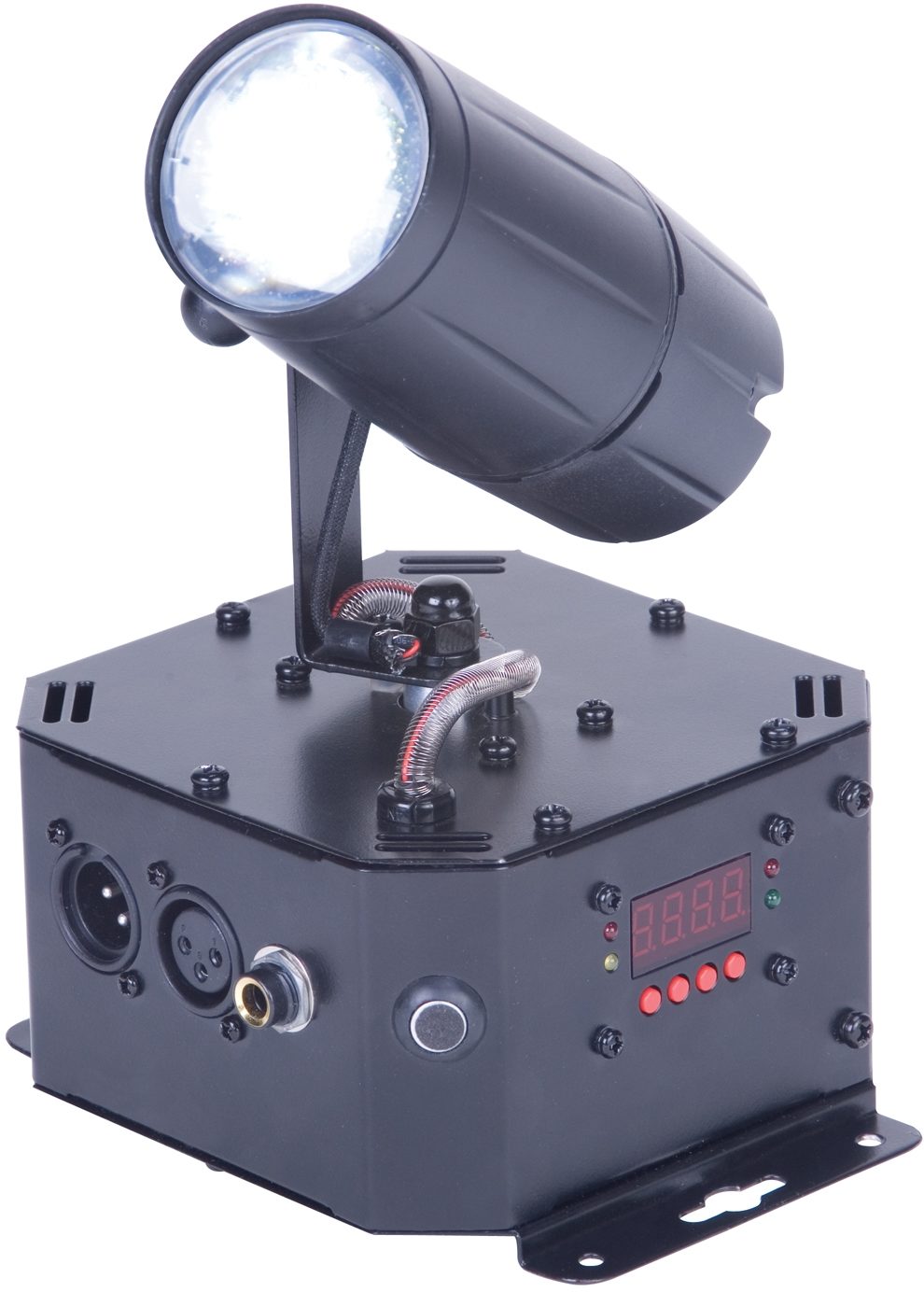

American DJ LED Beam Scan Stage Light, Main

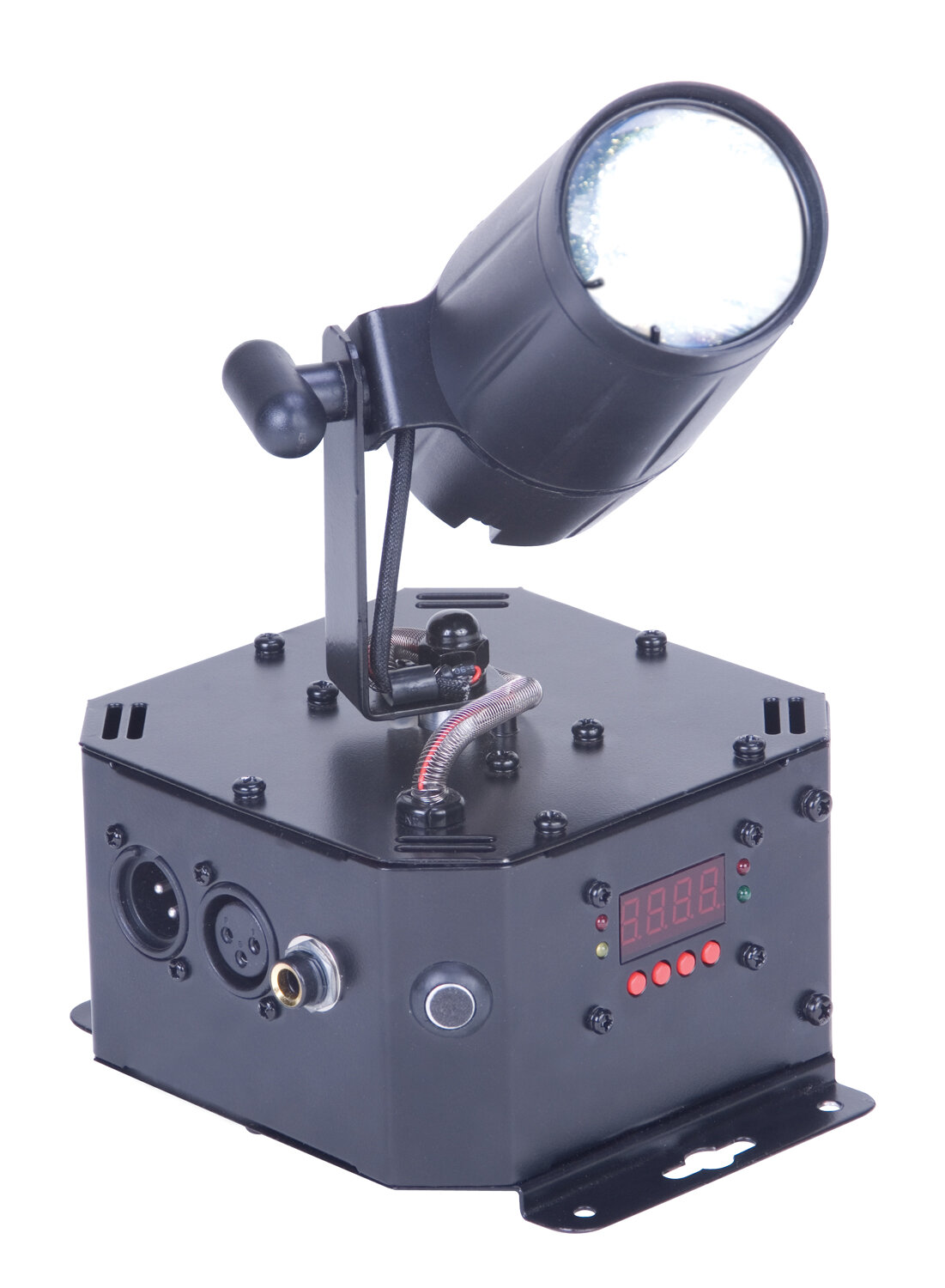

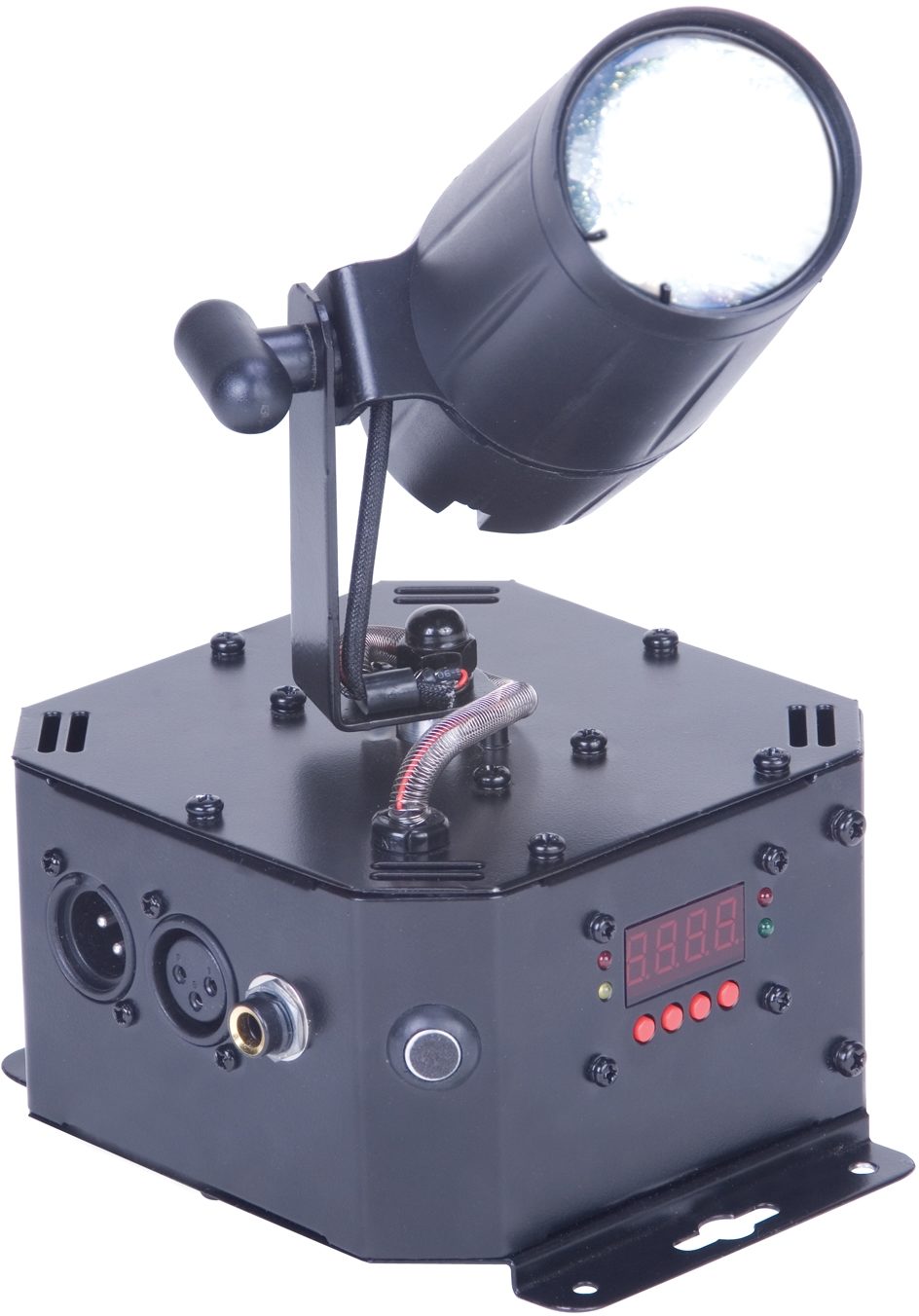

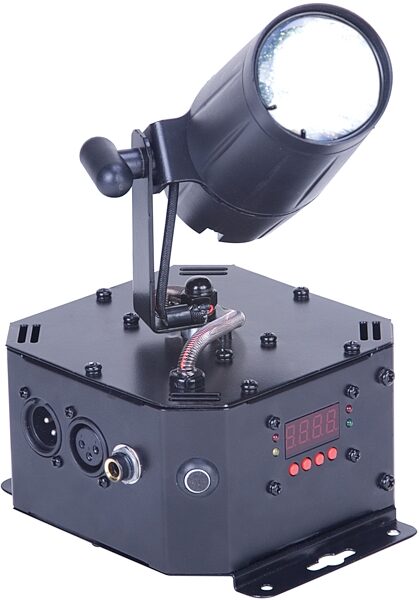

American DJ LED Beam Scan Stage Light, Angle
American DJ LED Beam Scan Stage Light, Back

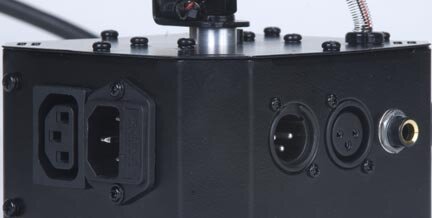

American DJ LED Beam Scan Stage Light, Connections

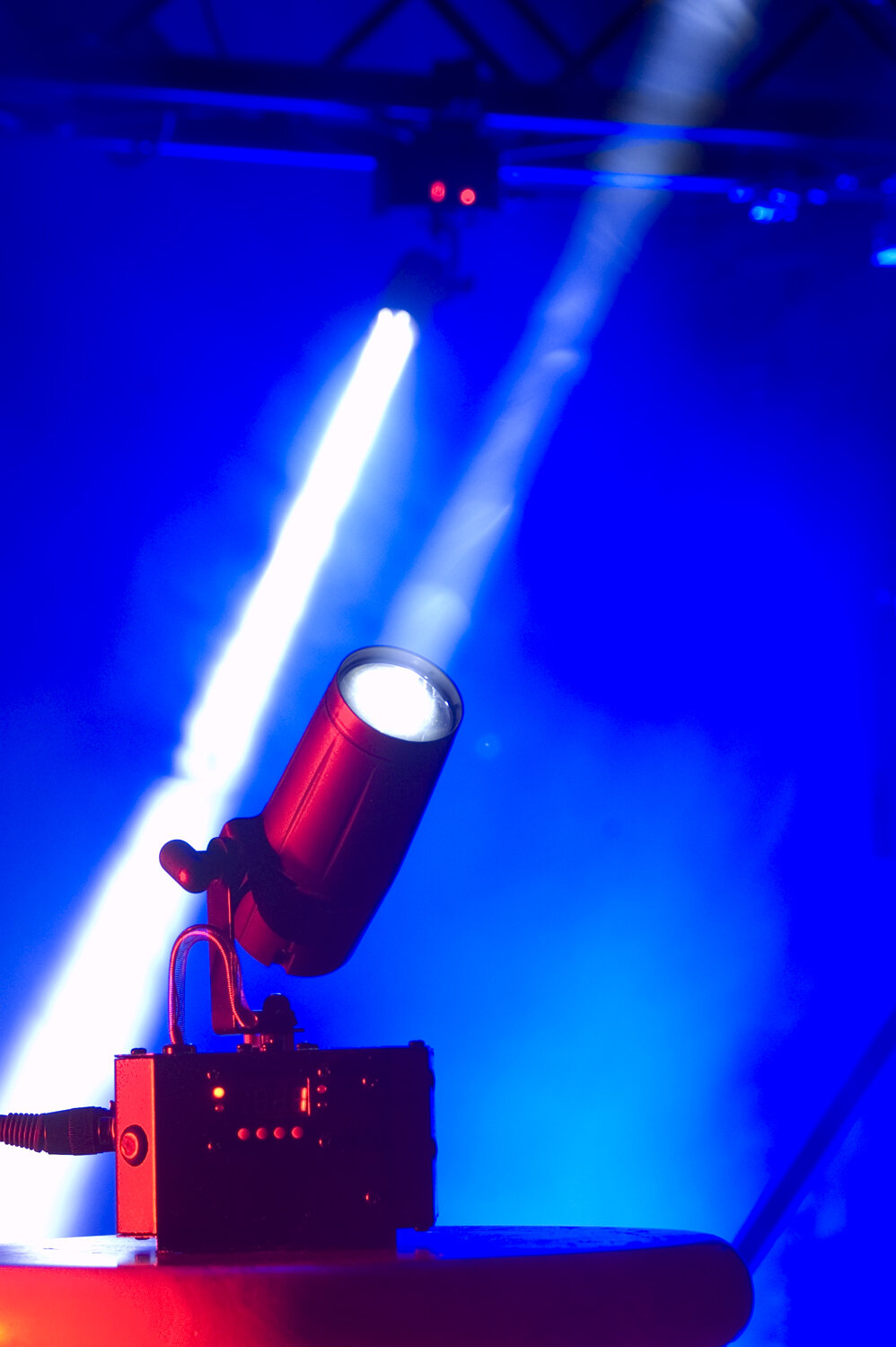

American DJ LED Beam Scan Stage Light, FX1

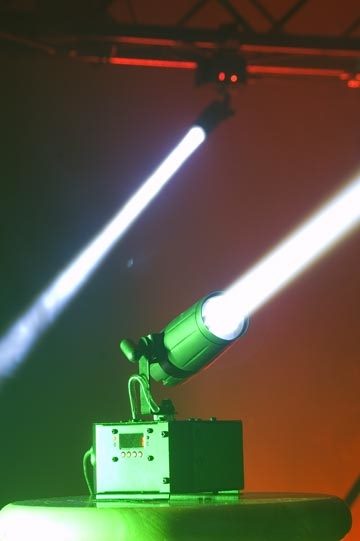

American DJ LED Beam Scan Stage Light, FX2
American DJ LED Beam Scan Stage Light, FX3
American DJ LED Beam Scan Stage Light, Main American DJ LED Beam Scan Stage Light, Angle American DJ LED Beam Scan Stage Light, Back American DJ LED Beam Scan Stage Light, Connections American DJ LED Beam Scan Stage Light, FX1 American DJ LED Beam Scan Stage Light, FX2 American DJ LED Beam Scan Stage Light, FX3
Affordable yet powerful, the ADJ LED Beam Scan features simple DMX control, dimming, and up to 270 degree panning.

The American DJ LED Beam Scan is a bright 3 watt white beam DMX LED pinspot with a panning head.

Features

- 12-degree beam angle
- 3 or 5 channel DMX Modes
- DMX-512 protocol with 4-button DMX LED menu
- Sound active, DMX & Master/Slave operational modes:
- Strobe effect
- 0-100% electronic dimming
- Up to 270 degrees panning
- Long-life LED: 50,000 hour LED life
- Very low heat output and power consumption

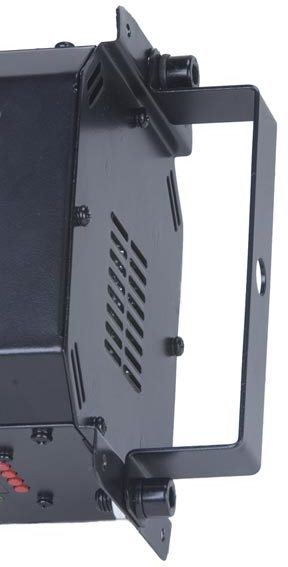

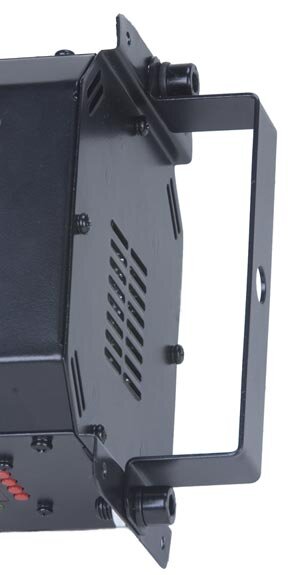

- Includes removable hanging bracket for mounting on truss, or remove bracket so the unit may be set upright on a table or floor
- 6-degree beam angle lens also included
- Multi-voltage operation (AC 100V-240V 50/60Hz)
- In/Out IEC power connections to daisy-chain power
- 15 watt power consumption per unit
- Compatible with the UC3 easy-to-use controller (sold separately)

- LED: 1 x 3 watt
- Voltage: 100V~240V 50/60Hz
- Power Consumption: 11 watts
- Fuse: 7 Amp
- Power Cord Daisy Chain: 48 Fixtures Maximum
- Dimensions(L x W x H): 6.7 x 6.2 x 7.1 in. / 172mm x 157mm x 182mm
- Weight: 2.8 Lbs. / 1.3 kgs.
- Duty Cycle: None
- DMX: 3 or 5 DMX Channels
- Colors: White
- Sound Active: Yes
- Working Position: Any Safe, Secure Position
- Warranty: 3 Year (1095 days)

For support or warranty questions, please contact the manufacturer:
Phone: 323-582-2650
Email: support@adj.com
Web: https://www.adj.com/support
