Let there be light! The ADJ Focus Beam LED light emits a powerful 7400K beam with motorized focus, prism effects, and a frost filter for adjustable washes.

The Focus Beam LED, a complementary fixture to other Focus Series moving heads, uses a powerful 80W LED engine to produce a powerful, 7400K, 5-degree beam from an advanced optical system. This fixture features motorized focus, two prism effects (rotatable 8-facet Circular and rotatable 6-facet Linear), and it has a built-in in frost filter for wash effects.

There are a variety of control options on the Focus Beam LED such as: DMX & RDM protocol, a variety of dimming modes, fine pan and fine tilt options, and adjustable gamma and LED refresh rate settings. There is an on-board function display with 5 touch buttons making it easy to dial in custom settings.

The Focus Beam LED offers 13 dichroic colors plus white, and has 15 fixed GOBOs plus open and a GOBO shake effect.

There is a convenient USB port on the rear panel used to update firmware. The fixture has locking Seetronic In/Out connections to daisy chain power, and 3-pin DMX In/Out to link data. The fixture is compact and lightweight, suitable for fixed installations or temporary, mobile event applications.

Features:

- Control Protocol: DMX & RDM
- DMX Modes: 2 (16 & 18)
- Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- Dim Speed control (0.1~10 Seconds)
- Dimming: 0 - 100%
- Strobe & pulse control
- Motorized Focus
- Linear Frost 0-100% (Wash effect)
- 2 Prisms: 6 & 8 Facet, Indexable and Rotatable
- USB firmware update port
- Adjustable LED Refresh Rates (900~25k Hz)
- Adjustable… read more Gamma Settings (1.0-2.8)
- With Wired Digital Communication Network
- Display: Touch display with 5-button touch menu read less

- Light Source:
- 80W Cool White LED Engine
- 5* Beam Angle
- Color Temperature: 7400K
- 50,000 Hour Average LED Life

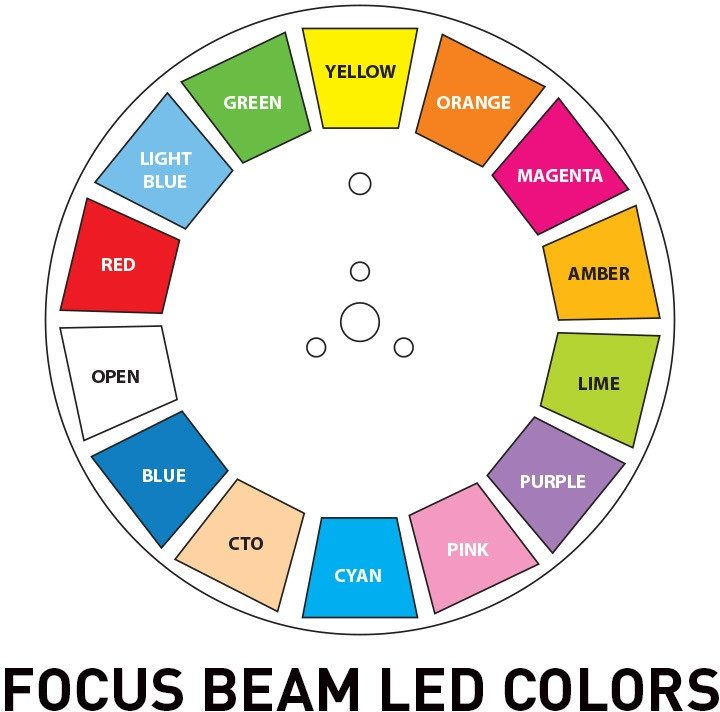

- Color Wheel: 13 dichroic colors + white

- GOBO Wheel:
- Metal wheel with 15 fixed GOBOs + Open
- GOBO shake effect

- Prism Wheel:
- Prism Wheel 1: Rotatable 8-facet Circular
- Prism Wheel 2: Rotatable 6-facet Linear
- Prism Indexing with overlay feature

- Control:
- Control Modes: DMX512, RDM & Stand Alone Internal Programs
- 2 DMX Channel Modes: 16 & 18 channels
- 16-Bit Pan, Tilt & Dimmer control

- Connections:
- DMX Connections: 3-pin Locking XLR In & Out
- Power Connections: Seetronic Locking Power In & Out

- Pan/Tilt:
- Pan & Pan Fine: 630 degrees
- Tilt & Tilt Fine: 270 degrees

- Electrical:
- Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)
- Maximum Power Consumption: 136W @ 120V
- Daisy chain: 15 units @ 120V; 30 units @ 230V

- Dimensions & Weight:
- Dimensions (LxWxH): 10.96" x 6.85" x 17.61" / 278x174x447mm
- Weight: 27 lbs. (12.25 kg)

- What's Included:
- 2x Omega Brackets
- 1x Seetronic Power Locking Power Cable
